Door mirrors

Adjustment

Select the door mirror using switch 2, then use button 1 to adjust it to the desired position.

Heated door mirrors

Mirror de-icing is carried out at the same time as rear screen de-icing.

MANUAL AIR CONDITIONING or AUTOMATIC CLIMATE CONTROL: Control A or AUTOMATIC CLIMATE CONTROL: Controls B and C

Folding door mirrors

The door mirrors automatically fold in when the vehicle is locked (switch 3 in position B).

In any case, you can make the door mirrors fold in (switch 3 in position C) or fold out (switch 3 in position A).

Automatic mode is then deactivated. To reactivate it, position switch 3 to B.

Welcome and goodbye function

(depending on vehicle)

From the multifunction screen, select menu “Vehicle”, “User settings”, “External welcome” and activate or deactivate the function (ON or OFF).

Depending on the selected choice, the door mirrors will fold out:

- when the ignition is next switched on (function deactivated);

- upon detecting the RENAULT card or upon unlocking the vehicle (function activated).

The driver’s door mirror may have two clearly defined zones. Zone D shows what can normally be seen in an ordinary rear view mirror. Zone E increases rear side visibility.

Objects in the mirror are closer than they appear.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

Rear view mirrors which tilt in reverse gear

For vehicles equipped with the driver’s seat with position memory, you can enter a specific setting for the door mirrors when reversing and store the position.

With the vehicle at a standstill and reverse gear engaged, select the door mirror using switch 2 then, with button 1, adjust it to the required position.

Position memory

- Adjust the door mirrors (see previous paragraphs);

- from the multifunction screen, select menu “Vehicle”, “Seats”, “Settings” then “Position” and select “Save”.

The positions of the door mirrors in a forward gear, reverse and of the front seats are simultaneously saved.

Recalling the memorised position

From the multifunction screen, select menu “Vehicle”, “Seats”, “Settings” then “Position” and select “Recall”.

The positions of the door mirrors in forward gear, reverse and of the front seats are recalled.

Returning to the driving position

Moving from reverse gear to a forward gear is done:

- approximately 9 seconds after reverse gear has been disengaged when the speed is lower than 6 mph (10 km/h);

- forward gear engaged when the speed is greater than 6 mph (10 km/h);

- when the engine is stopped;

- when switch 2 is in neutral position.

For safety reasons, carry out any adjustments when the vehicle is not being driven.

Interior rear view mirror

Its position can be adjusted.

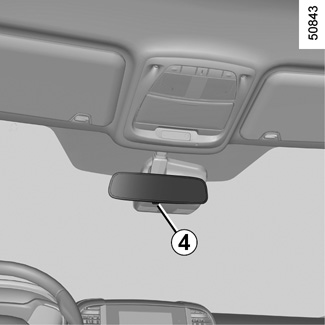

Rear-view mirror with lever 4

For night driving, to avoid being dazzled by the headlights of the car behind you, flip the small lever 4 located behind the rear view mirror.

Rear view mirror without lever 4

The rear-view mirror darkens automatically at night if you are being followed by a vehicle with its lights on.
