The passenger airbag may only be activated or deactivated when the vehicle is stationary with the ignition off.

Front passenger airbag deactivation


Before installing a child seat on the front passenger seat:

  • check that the child seat can be installed on this seat;
  • it is essential to deactivate the airbagfor a rear-facing child seat.

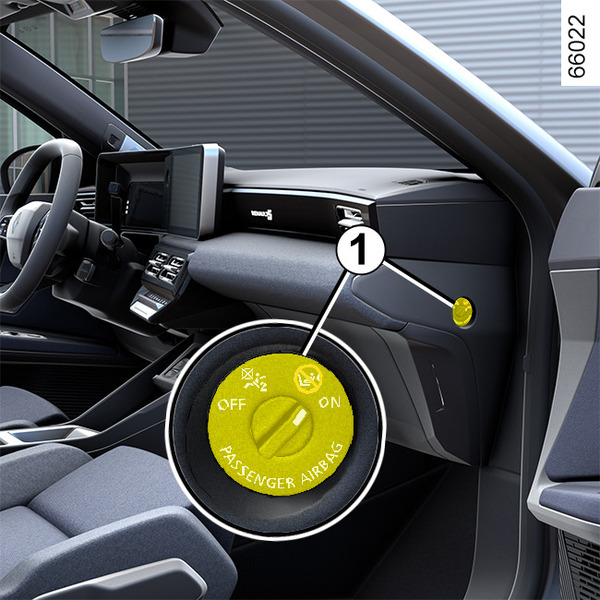

To deactivate the airbag: with the vehicle stationary and the ignition switched off, push and turn the lock 1 to the OFF position.

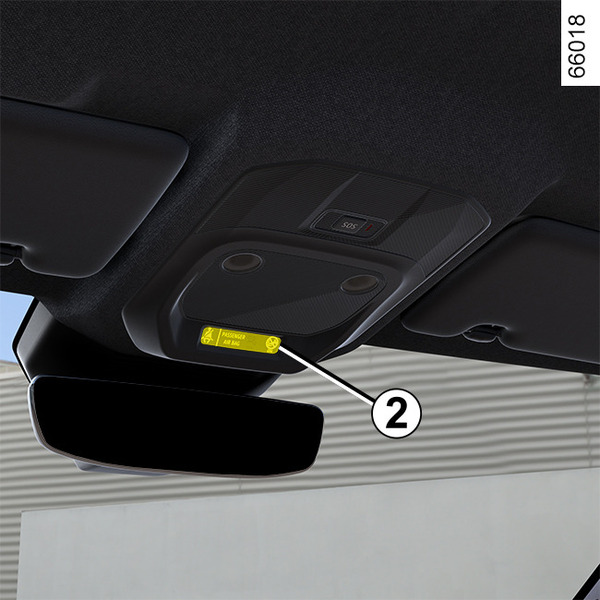

When the ignition is switched on, you must check that the 2_ALL_053_1_pictogramme.png warning light is illuminated on the display 2.

This light remains continuously lit to let you know that you can fit a child seat.

warning

DANGER

As the deployment of the front passenger airbag is not compatible with the positioning of a rear-facing child seat, NEVER fit a rear-facing child restraint system on a seat protected by an ACTIVATED front airbag. This can cause the CHILD’S DEATH or SERIOUS INJURY.


The markings on the dashboard and the labels A on each side of the passenger sun visor 3 (see example of label above) are provided to remind you of these instructions.

Activation of the front passenger airbag


You should reactivate the airbag as soon as you remove the child seat from the front passenger seat to ensure the protection of the front passenger in the event of an impact.

To reactivate the airbag: with the vehicle stationary and the ignition switched off, push and turn the lock 1 to the ON position.

When the ignition is switched on, you must check that the 2_ALL_053_1_pictogramme.png warning light is off and that the 2_ALL_204_1_pictogramme.png warning light lights up on the display 2 after each start-up for around 1 minute.

The front passenger airbag is activated.

Operating faults

In the event of a fault with the front passenger airbag activation/deactivation system, the 2_ALL_094_1_pictogramme.png and 1_ALL_036_1_pictogramme.png warning lights are displayed on the instrument panel.

Switch off the ignition and check the position of the lock 1.

Switch the ignition back on: the warning lights go out.

If the problem persists, it signals a system failure. In this case, it is prohibited for a rear-facing child seat to be fitted to the front passenger seat or for any other passenger to occupy the seat.

Contact your approved Dealer as soon as possible;
