Renault Zoe Phase 2
There are two ways to unlock/lock the vehicle:
- “hands-free”, when approaching and moving away from the vehicle;
- using the card in remote control mode.
Never leave your vehicle with the card inside.
Deactivating/activating the “hands-free” mode
Depending on the vehicle, you can deactivate/activate unlocking when approaching and locking when moving away from the vehicle.
You can also disable/activate the sound signal that is emitted upon locking when moving away from the vehicle VEHICLE SETTINGS CUSTOMISATION MENU.
Do not store the card anywhere it may come into contact with other electronic equipment (computer, phone etc.) as this could hinder its operation.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors, for example.
Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.
Unlocking in “hands-free” mode, when approaching and moving away from the vehicle

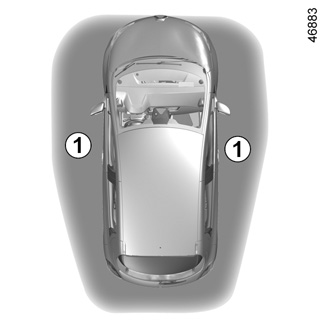

With the card in access zone 1, the vehicle will unlock.
The hazard lights and side repeaters flash once to indicate that the doors have unlocked and, on some vehicles, the door mirrors fold out automatically.
Remote “Hands-free” locking
With the card on you, doors and luggage compartment door closed, move away from the vehicle: it will lock automatically once you have left the access zone 1.
Note: the distance at which the vehicle locks depends on the surroundings.
The hazard lights flash twice then remain illuminated for about four seconds, a beep sounds to indicate that the doors have locked and, on some vehicles, the door mirrors fold in automatically.
Depending on the equipment level, the door mirrors fold in automatically to confirm locking.
If the card has been within the detection area 1 for approximately 15 minutes, remote locking is disabled. To lock the vehicle, press button 3 on the card.

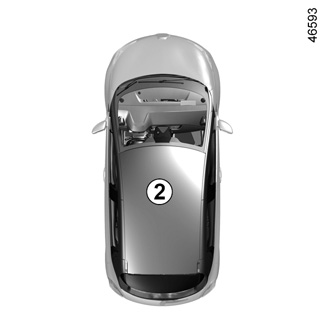

The vehicle cannot be remotely locked if the card is within the area 2.
“Hands-free” unlocking using button 4
With the card in area 1 and the vehicle locked, press button 4 to unlock the entire vehicle.
Unlocking is indicated by one flash of the hazard warning lights and the indicator lights.
Special features of the unlocking system
Under certain circumstances, approach unlocking is deactivated:
- after eight days of no use of the vehicle;
- if the card remains close to the 1 area of the vehicle for approximately five minutes after the vehicle has been locked;
- after several passes in the vicinity of the 1 area of the vehicle and without the door being unlocked.
Press button 4 or the remote control to unlock the vehicle and reactivate the mode.

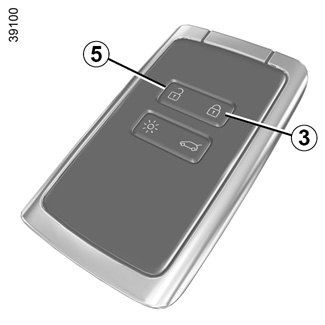

Using the card as a remote control
Unlocking with the card
Press button 5.
Unlocking is indicated by one flash of the hazard warning lights and the indicator lights.
Locking using the card
With the doors and boot closed, press button 3: the vehicle locks.
The hazard warning lights flash twice to indicate that the vehicle is locked and, depending on the vehicle, the door mirrors automatically fold in.
Pressing the 3 button twice locks the vehicle and enables the closure of the front and rear windows (depending on the vehicle).
Note:
- the maximum distance at which the vehicle locks depends on the surroundings;
- if a door or the boot is open or not properly shut, locking is not carried out. A beep sounds but the hazard warning lights and side repeaters do not flash.
The card buttons are deactivated when the engine is running.
If, while the engine is running, a door is opened and closed, and the card is no longer in the zone 2, the message “Keycard Not Detected” indicates that the card is not inside the vehicle. This will, for example, prevent you from driving away after dropping off a passenger who has kept the card on them.
The warning disappears when the card is detected again.
Locking/unlocking only the boot
Press the button 6 to lock/unlock the boot only.
Unlocking the charging cord
Press button 5 to unlock the charging cable from the vehicle.
Driver’s responsibility when parking or stopping the vehicle
Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.
They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors, for example.
Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.
RISK OF DEATH OR SERIOUS INJURY.
