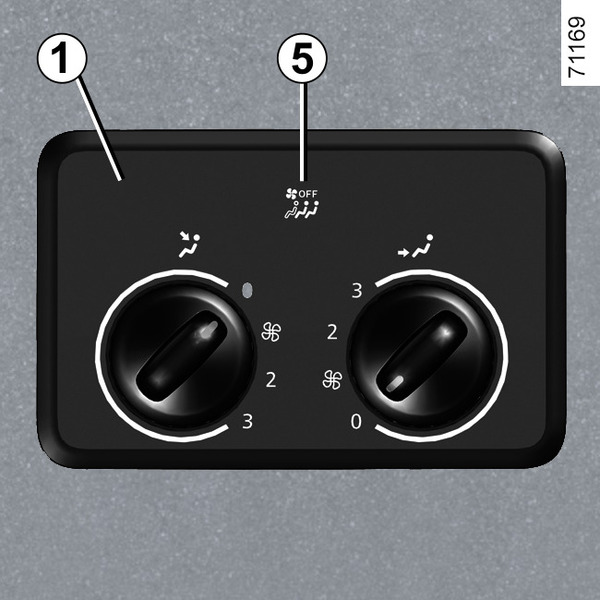

On equipped vehicles, there are four adjustable air vents and a control console 1.

These controls only affect the amount of air blown into the passenger compartment:

  • one control for hot air (this is blown through the lower vents);
  • one control for cold (air comes from upper vents).

Note: avoid closing the four air vents at the same time (risk of damaging the system components).

Vehicle fitted with manual air conditioning

Make sure that the air conditioning is operational (indicator light for button 2 illuminated).

Note: button 2 includes an operation indicator light:

  • if the indicator light is on, this indicates that the function is in operation;
  • indicator light off, the function is switched off.

Vehicle fitted with automatic air conditioning

Controls

Make sure that the air conditioning is operational (indicator light for the A/C OFF button 4 illuminated).

To activate the control console settings 1, press switch 3. The indicator light for switch 3 and the indicator light 5 for control 1 are off.

Note: switch 3 and the control console 1 include operation indicator lights:

  • if switch 3 and indicator light 5 are illuminated, the control 1 is not activated;
  • if switch 3 and indicator light 5 are off, the control 1 is activated.
