warning

Driver's responsibility

Never leave your vehicle with the card or key inside when there is a child, dependent adult or a pet in it, even for a short while. They may pose a risk to themselves or to others by starting the engine or activating equipment (such as the gear lever or electric windows). If any part of the body becomes trapped, reverse the direction of the window immediately by pressing the relevant switch.

Risk of serious injury.

Electric windows

tip

Avoid resting any objects against a half-open window: there is a risk that the electric window could be damaged.

Ignition on:

  • press the switch for the window concerned to lower it to the desired height;
  • raise the button to raise the window to the desired height.

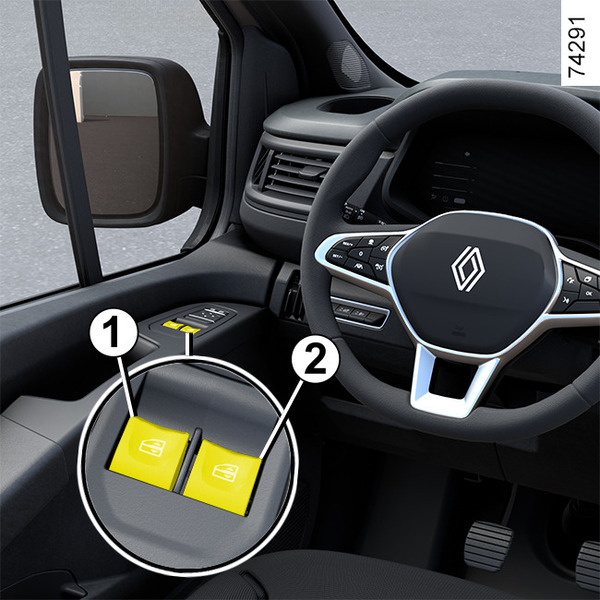

From the driver's seat

Press the switch:

  • 1 for the driver's side;
  • 2 for the passenger's side.

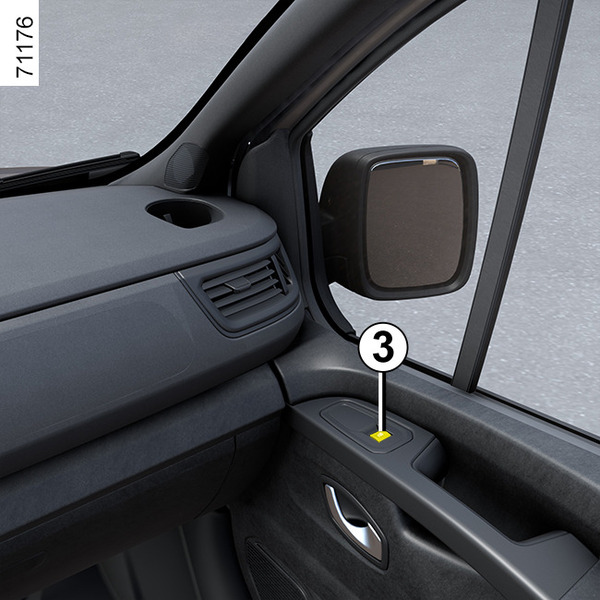

From the front passenger seat

Press the switch 3.

One-touch mode

Depending on the vehicle, this mode works in addition to the operation of the electric windows described previously. It is only fitted to the driver's window.

Briefly press or pull the switch 1 as far as it will go: the window will be fully opened or closed. Pressing the switch again stops the window moving.

Impossible to operate the one-touch electric window

The one-touch electric window is equipped with heat protection: if you press the switch for the window more than sixteen consecutive times it goes into protection mode (the window is locked).

You can:

  • use the electric window switch briefly and with intervals of approximately 30 seconds;
  • with the engine running, the window will be unlocked after approximately 20 minutes of inaction on the electric window switch.

Note: if the window detects resistance when closing (e.g. by a tree branch, etc.), it stops and then lowers again by a few centimetres.

Operating faults

warning

When closing the windows, ensure that no part of the body (arm, hand, etc.) is protruding from the vehicle.

Risk of serious injury.

In case of a fault when closing a window, the system reverts to normal mode: pull the switch concerned up as often as necessary to fully close the window (the window will close gradually), hold the switch (still on the closure side) for one second then lower and raise the window fully to reinitialise the system.

If necessary, contact your approved Dealer.

Sliding rear windows

warning

Sliding windows and doors

Before moving them, ensure that no passenger has part of their body outside the window or door.

Move the handle 4 and slide the window to the desired notch.
