Rev counter 1

(graduations x 1000)

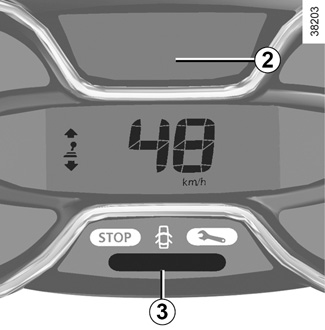

Driving style indicator 3

Please refer to the information on “Eco-driving” in Section 2.

Low engine oil level warning

When the engine is started, display 2 alerts the driver when the oil level is at its minimum. Refer to the information on the “Engine oil level” in Section 4.

Fuel level gauge 4

Zone A: Indicates that the tank is full.

Zone B: Indicates that the tank is down to reserve level and the fuel warning light comes on. Fill up as soon as possible.

Speedometer 5

(km or miles per hour)

Overspeed buzzer

Depending on the vehicle, a warning beep sounds for approximately 10 seconds every 30 seconds, as long as the vehicle is travelling in excess of 75 mph (120 km/h).

Instrument panel in miles

(option to switch to km/h)

- With ignition off, press button 8 or 9 at the end of stalk 6 and the start button 7;

- the speedometer unit indicator flashes for approximately ten seconds, then the new unit is displayed: release button 8 or 9 when the unit stops flashing.

To return to the previous mode, repeat the same operation.

Note: once the battery is switched off, the trip computer and warning system automatically returns to the original unit of measurement.
