š Side lights

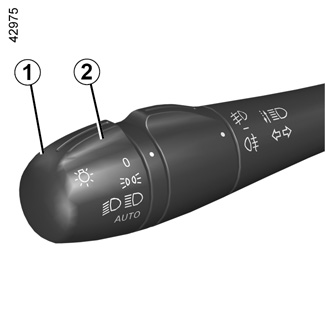

Turn the ring 2 until the symbol is opposite mark 3.

An indicator light on the instrument panel will come on.

When driving on the left in a lefthand drive vehicle (or vice versa), drivers must re-adjust their lights throughout their stay (see “Adjusting headlight beams” in Section 1).

Daytime running lights function

The daytime running lights come on automatically with no action on stalk 1 when the engine is started, and they go off once the engine is switched off.

k Dipped beam headlights

Manual operation

Turn the ring 2 until the symbol is opposite mark 3. This indicator light on the instrument panel comes on.

Automatic operation

(depending on vehicle)

Turn ring 2 until the AUTO symbol is opposite mark 3: with the engine running, the dipped beam headlights switch on or off automatically depending on the brightness of the light outside, without any action on stalk 1.

Before driving at night, check that the electrical equipment is operating correctly and adjust the headlight beams (if your vehicle is not carrying its normal load). As a general precaution, check that the lights are not obscured (by dirt, mud, snow or objects being transported).

Adjusting the headlight beam height

Depending on the vehicle, the headlight adjustment is automatic, based on the vehicle load.

“Follow-me-home lighting” function

This function allows you to briefly switch on the dipped beam headlights (to provide light when opening a gate, etc.).

With the engine and lights switched off and the ring 2 in position 0 or AUTO, pull the stalk 1 towards you: the dipped beam headlights come on for approximately thirty seconds. To increase this duration, you may pull the stalk up to four times (total time restricted to two minutes). The message “Follow-me home for - - -” accompanied by the lighting time is displayed on the instrument panel to confirm the action. You can then lock your vehicle.

To switch off the lights before they go out automatically, turn ring 2 to any position, then return it to position AUTO.

á Main beam headlights

With the engine running and the dipped beam headlights on, push stalk 1. This indicator light on the instrument panel comes on.

To return to the dipped headlight position, pull stalk 1 towards you again.

Lights-on reminder buzzer

A warning beep sounds when the driver’s door is opened to warn you that the lights are still on.

Switching off the lights

There are two possibilities:

- manually, move ring 2 to position 0;

- the lights will go out automatically when the engine is switched off, the driver’s door is opened or the vehicle is locked. In this case, the next time the engine is started, the lights will be switched back on according to the position of the ring 2, taking into account the exterior light level, without moving the stalk 1.

Welcome and goodbye function

(depending on vehicle)

Once the function is activated, the side lights come on automatically when the vehicle is unlocked.

They switch off automatically:

- approximately one minute after lighting up;

- when starting the engine based on the position of the lighting stalk;

or

- upon locking the vehicle.

g Front fog lights

Turn the centre ring 4 on the stalk 1 until the symbol is opposite mark 5, then release it.

Operation of the fog lights depends on the exterior lighting position selected, and an indicator light will light up on the instrument panel.

f Rear fog light

Turn the centre ring 4 on the stalk until the symbol is opposite mark 5, then release it.

Depending on the vehicle, the stalk returns to the initial position or stays in position.

Operation of the fog lights depends on the exterior lighting selected, and an indicator light will light up on the instrument panel.

To avoid inconveniencing other road users, remember to switch off the rear fog light when it is no longer needed.

Cornering lights

Whenever the dipped beam headlights are on and under certain conditions (at speed, the steering wheel at an angle, in forward gear, the indicator lights on, etc.), when taking a corner one of the front fog lights will come on to light the inside of the bend.

Turning off the fog lights

There are two possibilities:

- manually, depending on the vehicle, turn the ring 4 again to bring the mark 5 opposite the symbol for the fog light that you want to switch off, or bring the ring 4 into position -. The corresponding indicator light will go out on the instrument panel;

- the lights will go out automatically when the engine is switched off or the vehicle is locked, and the fog lights when the driver’s door is opened.

The front and rear fog lights switch off when the exterior lights are switched off.

When driving in fog or snow, or when transporting objects which are higher than the roof, the headlights do not come on automatically.

Switching on the fog lights remains the responsibility of the driver: the indicator lights on the instrument panel inform you whether the fog lights are lit (indicator light on) or not (indicator light not on).
