Reading light/courtesy light assembly 1

Unclip the lens (using a flat-blade screwdriver or similar).

Remove the bulb concerned.

Type of bulb: W5W.

LED reading lights 2

(depending on vehicle)

Consult an approved dealer

Courtesy light 3

Unclip the lens (using a flat-blade screwdriver or similar).

Remove the bulb concerned.

Type of bulb: W5W.

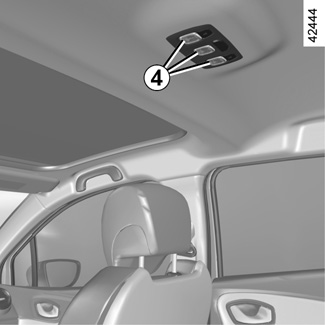

LED reading light/courtesy light assembly 4

(depending on vehicle)

Consult an approved dealer

The bulbs are under pressure and can break when replaced.

Risk of injury.

Soft lighting 5

Please contact an authorised dealer.

Courtesy mirrors

Unclip the light 6 by pressing the tab on its left side (using a flat-bladed screwdriver or similar).

Remove the bulb concerned.

Bulb type: W5W.

The bulbs are under pressure and can break when replaced.

Risk of injury.

Luggage compartment light

Unclip light 7 by pressing the tabs on each side (using a flat-blade screwdriver or similar).

Disconnect the light.

Press tab 8 to release lens 10 and access bulb 9.

Bulb type: W5W.
