Air outlets

1.

Side air vents

2.

Side window demister outlet

3.

Windscreen demister outlet

4.

Centre air vents

5.

Footwell heater outlets for front passengers

6.

Multimedia screen

7.

Footwell heater outlets for rear passengers

8.

Centre console air vents

Front seats

Direction

Right/left direction

Move the cursor 10.

Up/down direction

Move the cursor 10.

warning

Do not add anything to the vehicle’s ventilation circuit (for example, to remove bad odours).

There is a risk of damage or of fire.

Air flow

Turn the control knob 9:

to : maximum air flow;

to : closed.

To remove bad odours from your vehicles, only use the systems designed for this purpose. Consult an approved Dealer.

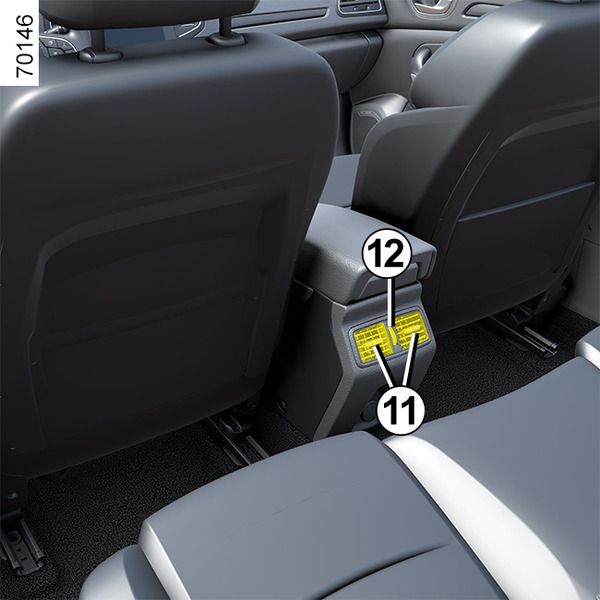

Rear seats

Right/left direction

Move the cursor 11.

Up/down direction

Move the cursor 11.

Air flow

Turn the control knob 12:

upwards: maximum flow;

downwards: closed.
