Fuse box
If any electrical component does not work, check the condition of the fuses.
Unclip cover A.
Tweezers 1
Remove the fuse using tweezers 1, located at the back of cover A.
To remove the fuse from the tweezers, slide the fuse to the side.

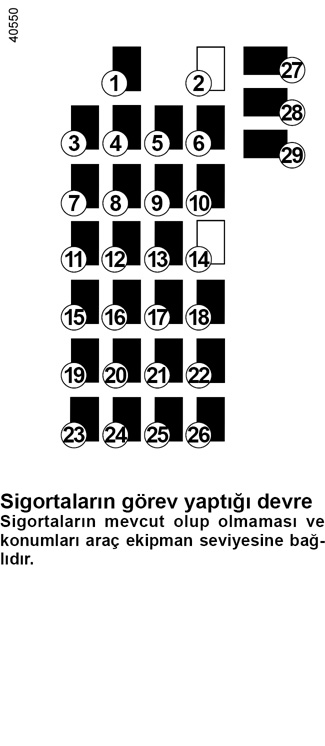

To locate the fuses, please see the following page.
It is not advisable to use the free fuse locations.
Some functions are protected by fuses located in the engine compartment. However, because of their reduced accessibility, it is recommended to have these fuses replaced by an authorised dealer.
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with local legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an approved Dealer.
Number | Allocation |
1
| Fuel pump
|
2
| Not used
|
3
| Passenger compartment engine cooling fan
|
4
| Passenger compartment engine cooling fan
|
5
| Rear windscreen wiper
|
6
| Horn, diagnostic socket
|
7
| Heated seats
|
8
| Electric rear windows
|
9
| Passenger compartment ECU
|
10
| Windscreen washer
|
11
| Brake lights
|
12
| Passenger compartment unit, ABS, ESP
|
13
| Electric windows, child safety, heating and air conditioning system, ECO mode
|
14
| Not used
|
15
| Starter
|
Number | Allocation |
16
| Brake lights, additional equipment, navigation, ABS, ESP, boot light, tyre pressure warning light, interior lights, rain and light sensor
|
17
| Radio, navigation system, display, alarm
|
18
| Additional equipment
|
19
| Heated door mirrors
|
20
| Hazard lights, rear fog lights
|
21
| Central locking of opening elements
|
22
| Instrument panel
|
23
| Rear accessories socket
|
24
| ESC, radio, heating and air conditioning system, heated seats, stop lights
|
25
| Front accessories socket
|
26
| Towbar
|
27
| Electric front windows
|
28
| Rear-view mirror control
|
29
| De-icing the rear screen and rear view mirror
|
