The presence, connections and location of this equipment depend on the vehicle version.

Radio location

Unclip the blanking cover. The connections for the aerial, + and - supply, and speaker wires are found behind the cover.

1 offset display (time, exterior temperature, radio and navigation);

2 audio connection socket;

3 radio unit;

4 radio steering column controls.

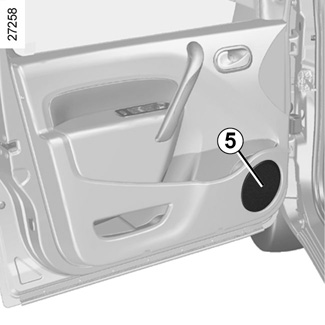

Bass speakers 5

To use this equipment, consult the instructions for the equipment which should be kept with the other vehicle documentation.

Rear speakers 7

- In all cases, it is very important to follow the manufacturer’s instructions carefully.

- The specifications of the brackets and wires vary depending on the equipment level of your vehicle and the type of radio.

Consult an approved Dealer to find out the correct part number.

- No work may be carried out on the vehicle’s electrical or radio circuits, except by approved Dealers: an incorrectly connected system may result in damage being caused to the electrical equipment and/or the components connected to it.
