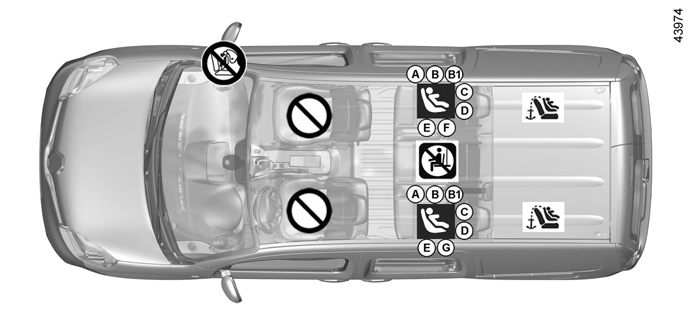

Estate version with 3 rear seats

² Seat not suitable for fitting child seats.

ü Seat which allows an ISOFIX child seat to be fitted.

± The rear seats are fitted with an anchorage point which allows a forward-facing ISOFIX child seat with universal approval to be fitted. The anchorage points are located in the luggage compartment and are visible.

The size of the ISOFIX child seat is indicated by a letter:

- A, B and B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);

- C [R3]: for rear-facing seats in group 1 (9 to 18 kg);

- D and E [R2, R1]: shell seats or rear-facing seats in group 0 or 0+ (less than 13 kg);

- F and G [L1, L2]: for carrycots in group 0 (under 10 kg);

- [B2]: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).

Using a child safety system which is not approved for this vehicle will not correctly protect the baby or child. They risk serious or even fatal injury.

Estate version with 2 rear seats

² Seat not suitable for fitting child seats.

Carrying a passenger is STRICTLY PROHIBITED.

ü Seat which allows an child seat to be fitted. ISOFIX.

± The rear seats are fitted with an anchorage point which allows a forward-facing ISOFIX child seat with universal approval to be attached. The anchorage points are located in the luggage compartment and are visible.

The size of the ISOFIX child seat is indicated by a letter:

- A, B and B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18  kg);

- C [R3]: for rear-facing seats in group 1 (9 to 18 kg);

- D and E [R2, R1]: shell seats or rear-facing seats in group 0 or 0+ (less than 13 kg);

- F and G [L1, L2]: for carrycots in group 0 (under 10 kg);

- [B2]: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).

Using a child safety system which is not approved for this vehicle will not correctly protect the baby or child. They risk serious or even fatal injury.

X = Seat not suitable for fitting child seats ISOFIX.

IUF/IL = On equipped vehicles, seat which allows a child seat with "Universal/Semi-universal or vehicle-specific" approval to be fitted using the ISOFIX system; check that it can be fitted.

i-U = Suitable for "universal" front-facing and rear-facing i-Sizerestraint devices.

(1) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

(2) If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the child seat.

(3) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat. Please refer to the information on the “Rear headrests” in Section 3. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat and the child’s legs.

The size of the ISOFIX child seat is indicated by a letter:

- A, B and B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);

- C and D [R3, R2]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);

- E [R1]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);

- F and G [L1, L2]: for carrycots in group 0 (under 10 kg);

- [B2]: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).

(4) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat in the front passenger seat, make sure the airbag has been deactivated (refer to the information on “Child safety: deactivation, activation of the front passenger airbag” in Section 1).

The table below summarises the information already shown on the diagram on the previous page, to ensure the regulations in force are respected.

Sport tourer versions

Type of child seat

Weight of the child

Seat size

[Height]

Front passenger seat

Rear side seats

Rear centre seat, five-seater version only

Carrycot fitted across the vehicle

Approved for group 0

< 10 kg

F, G

[L1, L2]

X

IL (1)

X

Rear facing seat/shell seat

Approved for groups 0, 0+ or 1

< 13 kg and 9 to 18 kg

C, D, E

[R3, R2, R1]

X

IL (1)

X

Forward-facing seat

Approved for group 1

9 to 18 kg

A, B, B1

[F3, F2, F2X]

X

IUF - IL (2)

X

Booster seat

Approved for groups 2 and 3

15 to 25 kg and 22 to 36 kg

[B2]

X

X

X

Seat I-Size

X

X

X

(1) If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the child seat.

(2) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child seat. Please refer to the information on the “Rear headrests” in Section 1. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat and the child’s legs.

The size of the ISOFIX child seat is indicated by a letter:

- A, B and B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);

- C and D [R3, R2]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);

- E [R1]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);

- F and G [L1, L2]: for carrycots in group 0 (under 10 kg);

- [B2]: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).
