Renault Megane Sedan
Control A
The controls

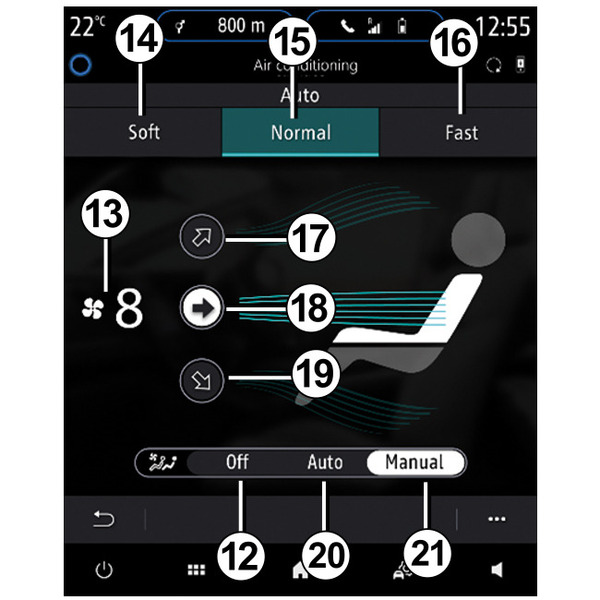

To access the automatic climate control settings from the multimedia screen 1, refer to the multimedia instructions.
The presence of the controls detailed below will depend on the vehicle model.
- 2.
Left and right programmed temperature adjustment.
- 3.
Air recirculation.
- 4.
Reduce the fan speed until the system switches off.
- 5.
Increase the fan speed.
- 6., 14., 15., 16.
Automatic modes.
- 7.
Short cut to the air conditioning page.
- 8.
SYNC "Synchronisation" function.
- 9.
De-icing/demisting of the rear screen and, depending on the vehicle, the rear view mirrors
- 10.
"Clear View" function.
- 11.
Air conditioning.
- 12.
Additional air conditioning OFF mode.
- 13.
Fan speed display.
- 17.,18., 19.
Passenger compartment air distribution.
- 20.
Additional air conditioning Auto mode.
- 21.
Additional Air Conditioning Manual Mode
tip
Some buttons have a warning light indicating their operative state.
Varying the ventilation speed
In automatic mode, the system uses the most suitable amount of air to reach and maintain the desired comfort level.
You can still adjust the fan speed by pressing switch 4 or 5.
Note: the air conditioning configuration depends on the mode selected in the "MULTI-SENSE" menu MULTI-SENSE.
Temperature adjustment
There are two types of settings:
- independent settings;
- function settings SYNC.
SYNC function
For a synchronised passenger compartment setting, press button 8 to activate it. The button indicator light 8 lights up. Then use control 11.
To deactivate the function, press the button 8 again or use the control 2 and adjust the right-hand side separately from the left-hand side.
The 2 button warning light switches off.
Note: the air conditioning configuration depends on the mode selected in the "Multi-Sense" menu MULTI-SENSE.
tip
The displayed temperature values show a comfort level.
When the vehicle is started, increasing or decreasing the value displayed does not mean that the temperature reaches comfort level more quickly. The system still optimises the decrease or the increase in temperature (the ventilation will not start at maximum speed immediately: it increases gradually). It may take from a few seconds to several minutes.
Generally speaking, unless there is a particular fault, the dashboard air vents should remain open.
"Clear View" function
This function quickly demists and de-ices the windscreen, the rear screen, the front side windows, and the exterior rear view mirrors (depending on the vehicle). It automatically activates the air conditioning and rear screen de-icing functions and, depending on the vehicle, the windscreen electric de-icer.
Press switch 10. The built-in indicator light comes on.
Press button 9 to switch off the heated rear screen function. The integrated indicator goes out.
To change the fan speed: press switch 4 or 5.
To exit this function,
press either:
- switch 6;
- switch 10 again;
- or button14, 15 or 16.
Automatic mode
The automatic climate control system guarantees comfort in the passenger compartment and good visibility (except in the event of extreme conditions), whilst optimising consumption. The system controls the ventilation speed, air distribution, air recirculation, and starting and stopping the air conditioning and air temperature.
This mode consists of a choice of three programmes:
NORMAL: optimises the selected comfort level according to exterior conditions. Press switch 6 or button 15.
SOFT: enables the desired temperature level to be obtained more smoothly and silently. Press the button 14.
FAST: increases the air flow in the passenger compartment. This mode is recommended in particular to optimise comfort in the rear seats. Press the button 16.
Switching the air conditioning on or off
In automatic mode, the system switches the air conditioning system on or off, depending on the climate conditions.
Press switch 11 to:
- activate the air conditioning manually (the indicator light for control 11 comes on);
- deactivate the air conditioning manually (the indicator light for control 11 goes out);
Stopping the system
Press switch 4 repeatedly as many times as necessary to stop the system.
tip
It is preferable to use one of the NORMAL, SOFT or FAST automatic programmes.
In automatic mode (switch indicator light 6 is lit), all air conditioning functions are controlled by the system.
You can still change the system's choice; in this case, the switch indicator light 6 goes out.
To return to automatic mode, press one of the programmes (NORMAL15, SOFT14 or FAST 16or switch 6.
Rear screen de-icing and demisting
Press switch 9. The built-in indicator light comes on. This function enables rapid demisting or de-icing of the rear screen and de-icing of the rear view mirrors (on equipped vehicles).
To exit the function, press the switch 9 again. Demisting automatically stops.
Adjusting the distribution of air in the passenger compartment
Press buttons 17, 18 and 19 to select the desired distribution mode (the air flow selected is displayed).
- 17.
The air flow comes from the windscreen demisting vents and the demisting vents of the front side windows.
- 18.
The air flow comes mainly through the dashboard air vents.
- 19.
The air flow comes mainly through the outlets located at the occupants' feet.
Air recirculation (isolation of the passenger compartment)
This function is managed automatically but you can also activate it manually.
Note:
- during recirculation, air is taken from the passenger compartment and is recycled without any air being taken from outside the vehicle;
- air recirculation allows the external atmosphere to be cut off (when driving in polluted areas, etc.) and to cool the passenger compartment temperature more quickly.
Manual use
Press switch 3 the indicator light for switch 3 comes on).
Prolonged use of this position may lead to odours, caused by non-renewal of air, and the formation of condensation on the windows.
We therefore advise you to return to automatic mode as soon as air recirculation is no longer needed, by pressing switch 3.
To exit the function, press switch 3 again.
tip
Demisting/de-icing will still take priority over the air recirculation.
Control B
The controls
(depending on the vehicle)
- 1.
Adjusting the driver's side air temperature.
- 2.
Air-conditioning activation control.
- 3.
"Clear View" function.
- 4.
Adjusting the ventilation fan speed.
- 5.
Distribution of air in the passenger compartment.
- 6.
Outside air quality.
- 7.
SYNC "Synchronisation" function.
- 8.
Adjusting the passenger's side air temperature.
- 9.
Air recirculation.
- 10.
"FAST" automatic mode.
- 11.
"AUTO" automatic mode.
- 12.
"SOFT" automatic mode.
- 13.
De-icing/demisting of the rear screen and, depending on the vehicle, the rear view mirrors.
tip
Any action on a button other than the AUTO button triggers deactivation of automatic mode.
Automatic mode
The automatic climate control system guarantees comfort in the passenger compartment and good visibility (except in the event of extreme conditions), whilst optimising consumption. The system controls the ventilation speed, air distribution, air recirculation, and starting and stopping the air conditioning and air temperature.
This mode consists of a choice of three programmes:
AUTO: optimises the selected comfort level according to exterior conditions. Press the button 11.
SOFT: enables the desired temperature level to be obtained more smoothly and silently. Press the button 12.
FAST: increases the air flow in the passenger compartment. This mode is recommended in particular to optimise comfort in the rear seats. Press the button 10.
Adjusting the ventilation fan speed
In automatic mode, the system uses the most suitable amount of air to reach and maintain the desired comfort level.
You can still adjust the ventilation speed by turning control 4 to increase or reduce the ventilation speed.
Adjusting the air temperature
Turn control 1 or control 8 according to the temperature required.
Turning the control to the right increases the temperature.
SYNC function
For a synchronised passenger compartment setting, press button 7 to activate it. The button indicator light 7 lights up.
To deactivate the function, press the button 7 again or use the control 8 and adjust the right-hand side separately from the left-hand side.
The 7 button warning light switches off.
Note: the air conditioning configuration depends on the mode selected in the "Multi-Sense" menu MULTI-SENSE.
"Clear View" function
Press button 3 and the built-in warning light comes on.
This function quickly demists and de-ices the windscreen, the rear screen, the front side windows, and the exterior rear view mirrors (depending on the vehicle). It automatically activates the air conditioning and rear screen de-icing functions.
Press the button 13 to deactivate the heated rear screen: the integrated indicator light goes out.
To exit this function, press button 3 or 11.
Adjusting the distribution of air in the passenger compartment
Press the control 5 as many times as necessary to select the passenger compartment air distribution mode. The display of the control 5 confirms the selected distribution mode.
-
The air flow comes from the windscreen demisting vents and the demisting vents of the front side windows.
-
The air flow is distributed between front side window demisting vents, the windscreen demisting vents and the footwells.
-
The air flow comes from the dashboard air vents, the front footwells and, depending on the vehicle, the second row footwells.
-
The air flow comes mainly through the dashboard air vents.
-
The air flow comes mainly through the outlets located at the occupants' feet.
tip
Some buttons have an operating light indicating their operative state.
Rear screen de-icing and demisting
Press the button 13 and the built-in warning light comes on. This function enables rapid demisting or de-icing of the rear screen and de-icing of the rear view mirrors (on equipped vehicles).
To exit this function, press button 13 again. Demisting automatically stops.
Switching the air conditioning on or off
In automatic mode, the system switches the air conditioning system on or off, depending on the climate conditions.
Press the button 2 to force deactivation of the air conditioning. The integrated indicator light goes off.
tip
Fuel consumption increases when the air conditioning is being used (switch it off when it is not required).
tip
Vehicles equipped with ECO mode (switch 14 or, depending on the vehicle, from the multimedia screen): when activated, ECO mode may reduce the performance of the automatic air conditioning Driving advice, eco-driving, MULTI-SENSE.
Air recirculation (isolation of the passenger compartment)
This function is managed automatically but you can also activate it manually. In this case, the operation is confirmed by the illumination of an indicator light on the button 9.
Manual use
Press button 9 and the built-in warning light comes on.
Prolonged use of this position may lead to odours, caused by non-renewal of air, and the formation of condensation on the windows.
We therefore advise you to return to automatic mode as soon as air recirculation is no longer needed, by pressing button 9.
Stopping the system
Turn the control 4 to "OFF" to stop the system. To start it, turn the control 4 again to adjust the blower speed or press button 11.
tip
Demisting/de-icing will still take priority over the air recirculation.
Control C
The controls
- 5., 11.
Left and right programmed temperature adjustment.
- 6.
De-icing/demisting of the rear screen and, depending on the vehicle, the rear view mirrors.
- 7.
Passenger compartment air distribution.
- 8.
"Automatic recirculation" function.
- 9.
Air recirculation.
- 10.
"Clear View" function.
- 12., 18.
Ventilation speeds.
- 13.
SYNC "Synchronisation" function.
- 14., 15., 16.
Automatic modes.
- 17.
Air conditioning.
Indicators
The following indicators are displayed on the screen 3:
- 1.
Active mode, ventilation speed and air distribution in the passenger compartment (temporary display after pressing the associated controls).
- 2.
Outside air temperature.
- 4.
Air temperature, left and right.
tip
Some buttons have a warning light indicating their operative state.
Automatic mode
The automatic climate control system guarantees comfort in the passenger compartment and good visibility (except in the event of extreme conditions), whilst optimising consumption. The system controls the ventilation speed, air distribution, air recirculation, and starting and stopping the air conditioning and air temperature.
This mode consists of a choice of three programmes:
AUTO: optimises the selected comfort level according to exterior conditions. Press button 15.
SOFT: enables the desired temperature level to be obtained more smoothly and silently. Press button 14.
FAST: increases the air flow in the passenger compartment. This mode is recommended in particular to optimise comfort in the rear seats. Press button 16.
Varying the ventilation speed
In automatic mode, the system uses the most suitable amount of air to reach and maintain the desired comfort level.
You will still be able to adjust the fan speed by pressing buttons 12 or 18.
Temperature adjustment
There are two types of settings:
- independent adjustment of the passenger compartment;
- adjustment in SYNC mode to synchronise the passenger's and driver's settings.
Adjustment of the passenger compartment
Use control 11.
Function SYNC
Press button 13 to activate. The button 13 warning light illuminates.
To deactivate the function, press the button 13 again or use the control 5 and adjust the right-hand side separately from the left-hand side.
The 13 button warning light switches off.
Note: the air conditioning configuration depends on the mode selected in the "Multi-Sense" menu MULTI-SENSE.
To deactivate the function, press the button 13 again or use the control 5 and adjust the right-hand side separately from the left-hand side.
Note: the air conditioning configuration depends on the mode selected in the "Multi-Sense" menu MULTI-SENSE.
tip
The displayed temperature values show a comfort level.
When the vehicle is started, increasing or decreasing the value displayed does not mean that the temperature reaches comfort level more quickly. The system still optimises the decrease or the increase in temperature (the ventilation will not start at maximum speed immediately: it increases gradually). It may take from a few seconds to several minutes.
Generally speaking, unless there is a particular fault, the dashboard air vents should remain open.
"Clear View" function
This function quickly demists and de-ices the windscreen, the rear screen, the front side windows, and the exterior rear view mirrors (depending on the vehicle). It automatically activates the air conditioning and rear screen de-icing functions and, depending on the vehicle, the windscreen electric de-icer.
Press button 10; the integrated indicator light comes on.
Press button 6 to stop the heated rear screen operating; the integrated indicator goes out.
To change the fan speed: press button 12 or 18.
To exit this function, press either:
- button 10 again;
- one of buttons 14, 15 or 16.
Switching the air conditioning on or off
In automatic mode, the system switches the air conditioning system on or off, depending on the climate conditions.
Press button 17 to:
- activate the air conditioning (the warning light in zone 1 illuminates).
- deactivate the air conditioning (the warning light in zone 1 goes out).
Stopping the system
To switch the system off, press button 12 repeatedly until the message OFF appears in zone 1.
tip
It is preferable to use one of the AUTO, SOFT or FAST automatic programmes.
In automatic mode (indicator light on button 14, 15 or 16 lit), all air conditioning functions are controlled by the system.
You can still modify the system's choice; in this case, the indicator light on button 14, 15 or 16 goes out.
To return to automatic mode, press one of programmes AUTO 15, SOFT 14 or FAST 16.
Rear screen de-icing and demisting
Press button 6; the integrated indicator light comes on. This function enables rapid demisting or de-icing of the rear screen and de-icing of the rear view mirrors (on equipped vehicles).
To exit this function, press button 6 again. Demisting automatically stops.
Adjusting the distribution of air in the passenger compartment
Press buttons 7 to select the desired distribution (a warning light is displayed in zone 1):
-
The air flow comes mainly from the windscreen demisting vents and the demisting vents of the front side windows.
-
The air flow comes mainly through the dashboard air vents.
-
The air flow comes mainly through the outlets located at the occupants' feet.
Air recirculation (isolation of the passenger compartment)
This function is managed automatically but you can also activate it manually.
Note:
- during recirculation, air is taken from the passenger compartment and is recycled without any air being taken from outside the vehicle;
- air recirculation allows the external atmosphere to be cut off (when driving in polluted areas, etc.) and to cool the passenger compartment temperature more quickly.
Automatic usage
Press button 8 (a warning light comes on in zone 1).
tip
Demisting/de-icing will still take priority over the air recirculation.
Manual use
Press button 9 to force air recirculation.
Prolonged use of this position may lead to odours, caused by non-renewal of air, and the formation of condensation on the windows.
We therefore advise you to return to automatic mode as soon as air recirculation is no longer needed, by pressing button 8 or button 9 again.
To exit this function, press button 8 or button 9 again.
