Screen

tip

For further information on the heating level, please refer to your vehicle user manual.

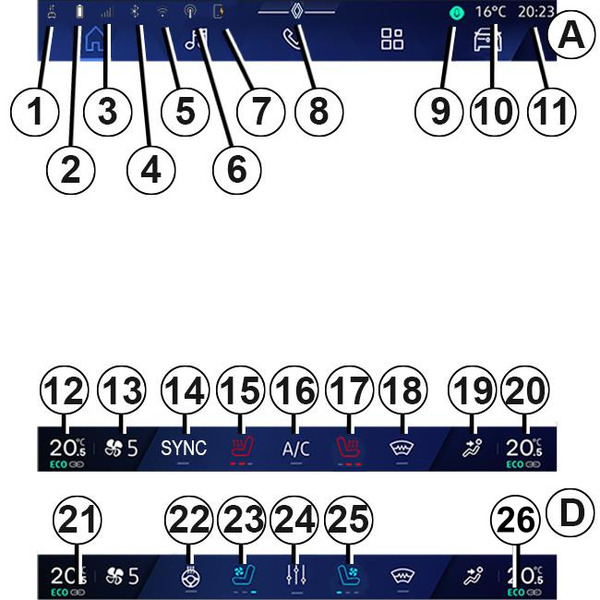

A.

Access and status bar.

B.

Access to different Worlds.

C.

Display area for selected World.

D.

Heating level bar indicator.

E.

Heating level settings (depending on equipment).

1.

Status of the connection and sharing of data;

2.

Phone battery charge level.

3.

Phone reception status.

4.

Bluetooth® of the activated multimedia system.

5.

Multimedia system WIFI status.

6.

Access Point activated.

7.

Status of the wireless charger.

8.

Access to the notification centre.

9.

Microphone status and control.

10.

Exterior temperature.

11.

Time.

12.

Driver's temperature setpoint indicator.

13.

Ventilation speed indicator.

14.

Synchronisation control SYNC.

15.

Heated driver seat control.

16.

Air conditioning control.

17.

Heated passenger seat control.

18.

Heated windscreen control.

19.

Passenger compartment air distribution indicator.

20.

Passenger's temperature setpoint indicator.

21.

"Synchronisation" indicator SYNC activated.

22.

Heated steering wheel control.

23.

Driver's ventilated seat control.

24.

Access heating level settings E.

25.

Passenger ventilated seat control.

26.

Air conditioning on indicator ECO.

Worlds' Screens

Your system is made up of several Worlds B:

  • "Home page" or "Navigation" (depending on equipment) ;
  • « Audio »  ;
  • "Phone"   or "Smartphone replication"  ;
  • « Applications  »  ;
  • « Vehicle » .

Note: the availability of Worlds depends on the equipment.

You can access the various Worlds at any time from the Worlds bar B which is visible and accessible at all times on the active screen.

"Home page" World

(depending on equipment)

The "Home page" world , which can be accessed using button 27, allows you to display four customisable widgets when the multimedia system is not equipped with Navigation.

"Navigation" World

(depending on equipment)

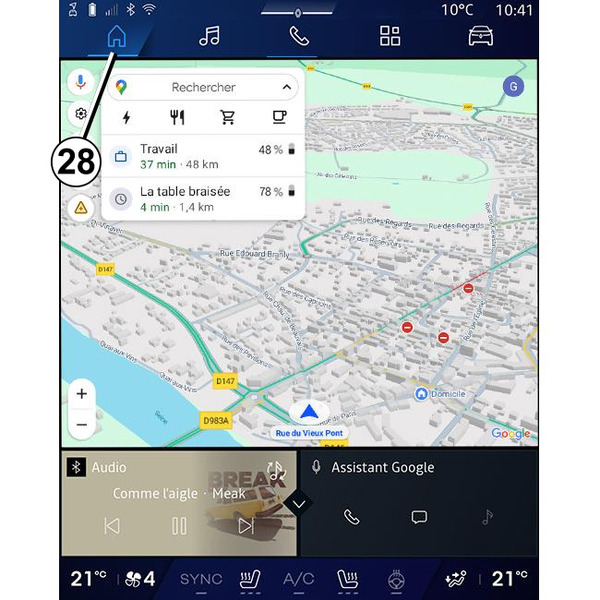

The "Navigation" world , which can be accessed using button 28, provides access to the Navigation. It is possible to display two customisable widgets.

"Audio" World

The "Audio" world , which can be accessed using button 29, provides access to the Radio and Music.

"Phone" World

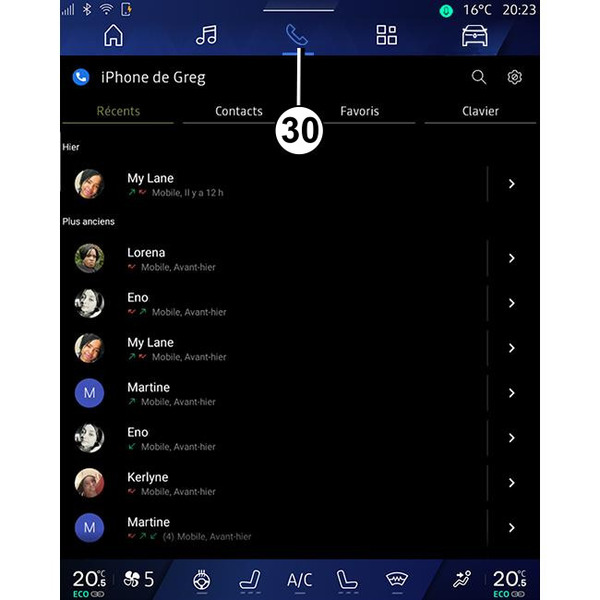

The "Phone" world , which can be accessed using button 30, provides access to Calls, the Phonebook and other telephone functions connected to the multimedia system.

Note: the "Phone" world icon may change while smartphone replication is in progress .

"Applications" World

The "Applications" world , which can be accessed using button 31, provides access to apps from the multimedia system and those available on "Play Store™" (depending on equipment).

"Vehicle" World

The "Vehicle" world , which can be accessed using button 32, provides access to some vehicle equipment such as MULTI-SENSE, driving aids, the 360° camera, My driving, etc. and enables you to adjust various settings on the multimedia such as the display, language, etc.

Note:

  • depending on the equipment level, only available functions that can be selected appear on the home screen;
  • you can also access the various modes by pressing your vehicle's "MULTI-SENSE" control repeatedly. Please refer to the vehicle user manual for further information.

Notification centre

The Notifications centre E, which can be accessed using button 8, or by quickly swiping the multimedia screen from area A towards the centre of the screen, enables you to access the Notifications, "Profile" and some functions at any moment. To exit the Notifications centre, press 8 or swipe up quickly from the bottom of the screen towards the centre of the screen.
