Renault Express
Fuse box
If any electrical component does not work, check the condition of the fuses.
Fuses in the passenger compartmentA
Unlock the handle 2 and pull to open the flap 1.

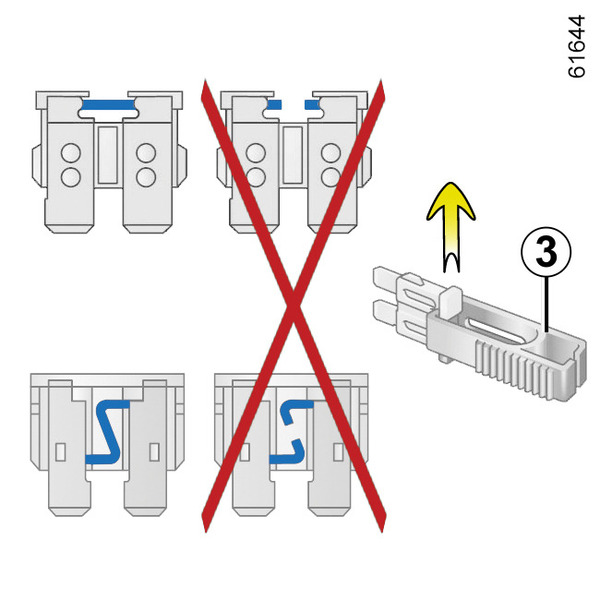

Tweezers 3
Remove the fuse using the tweezers 3, located on the back of the flap 1.
To remove the fuse from the tweezers, slide the fuse to the side.
It is not advisable to use the free fuse locations.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.
tip
Use the fuse allocation label in the storage compartment to identify the fuses.
Certain fuses should only be replaced by a qualified professional. These fuses are not listed on the label.
Only change the fuses represented on the label.
warning
Check the fuse in question and replace it, if necessary, with a fuse of the same rating.
If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
Fuses in the engine compartment B and C
Some functions are protected by fuses located in the engine compartment in units B and C.
However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved dealer.
warning
Before carrying out any action in the engine compartment, you must switch off the ignition Starting, stopping the engine.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
warning
When working in the engine compartment, ensure that the windscreen wiper stalk is in the off position.
Risk of injury.
Allocation of fuses
(the presence and location of fuses depends on the vehicle equipment level)
-
Horn
-
Front window winder, electric front windows
-
Central door locking
-
Heated seats, diagnostic socket
-
Courtesy lights, luggage compartment lighting, glove box lighting, energy management unit
-
Rain/light sensor
-
Front headlights
-
Front and rear fog lights
-
Direction indicator lights
-
Brake lights, reversing lights
-
Seat belt warning
-
Instrument panel
-
Towbar socket
-
Luggage compartment and front, rear accessories socket 12V, sockets USB
-
ABS - ESC, brake switch, clutch switch, engine immobiliser
-
Injection, passenger compartment unit
-
Starter
-
Airbag, seat belt pretensioners
-
Windscreen washer pump, windscreen wipers, wireless charging
-
Windscreen wiper
-
Air conditioning control panel
-
Air conditioning control panel, accessories sockets, radio
-
Cigarette lighter
-
Power-assisted steering
-
Interface for superstructures
-
Rear view electric mirrors control
-
Heated rear view mirrors
- EMM
Energy management unit
- RADIO
Radio, multimedia, diagnostic socket
