Fuses in passenger compartment A
If any electrical equipment does not work, check the condition of the fuses. Unclip the storage compartment A by pressing on either side and pulling towards you.
Clip 1

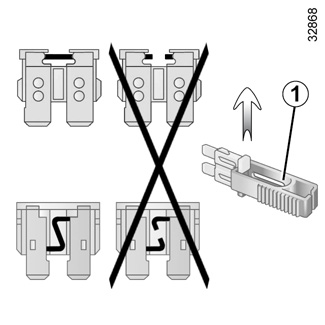

Remove the fuse using tweezers 1, located at the back of flap A.
To remove the fuse from the tweezers, slide the fuse to the side.
It is not advisable to use the free fuse locations.
Check the fuse in question and replace it, if necessary, by a fuse of the same rating.
If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.

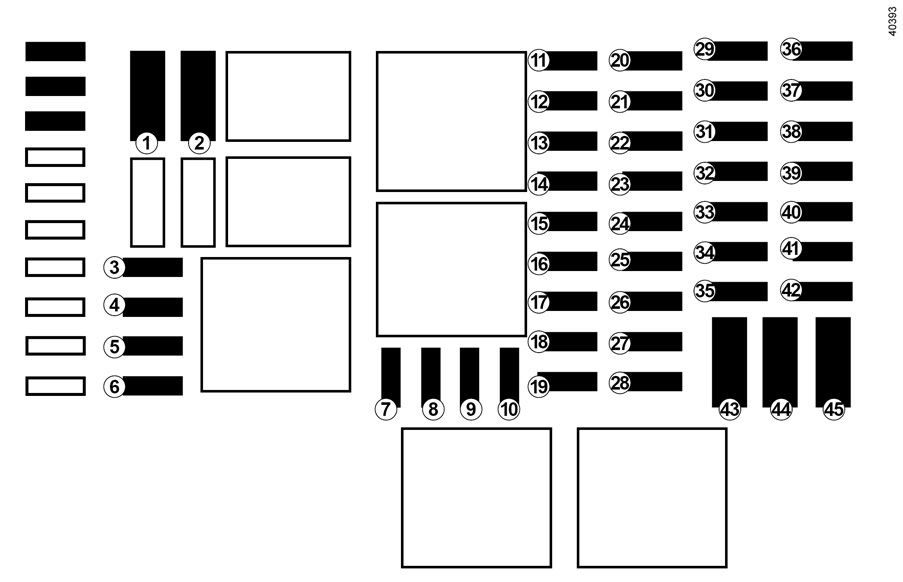

Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
No. | Allocation |
1
| APC load for vehicle with RENAULT card
|
2
| Adjustment
|
3
| Adjustment
|
4
| + battery for vehicles with RENAULT card
|
5
| Additional heating and air conditioning
|
6
| Supplementary passenger compartment heating
|
7
| Electric door mirrors, supplementary central unit adjustment
|
8
| Heated door mirror
|
9
| Radio, multimedia, rear-view mirror, diagnostic socket
|
10
| Pre-equipment, towbar socket
|
11
| Timed battery, passenger compartment unit
|
12
| Right-hand daytime running light, front side lights, right-hand main beam headlight, left-hand dipped beam headlight
|
13
| Hazard warning lights, direction indicator lights
|
No. | Allocation |
14
| Central locking of opening elements
|
15
| Left-hand daytime running light, rear side light, left-hand main beam headlight, right-hand dipped beam headlight
|
16
| Registration plate lighting, front and rear fog lights
|
17
| Alarm, horn, lighting and wiper stalks
|
18
| Instrument panel
|
19
| Heater
|
20
| Rear screen wiper, screenwash pump, horn
|
21
| General APC load
|
22
| Reversing lights
|
23
| Brake switch
|
24
| Injection, starting
|
25
| Airbag, steering column lock
|
26
| Passenger side window control
|
27
| Power-assisted steering
|
28
| Brake lights
|
No. | Allocation |
29
| APC load for vehicle with RENAULT card
|
30
| General service
|
31
| Cigarette lighter, accessories socket
|
32
| Heater
|
33
| Brake light, ABS, transponder
|
34
| Interior lighting, air-conditioning
|
35
| Starting for vehicles with RENAULT card
|
36
| Rear windscreen wiper
|
37
| Electromagnetic notification
|
38
| Accessories socket in the loading area
|
39
| Driver’s side window control motor
|
40
| Rear accessories socket
|
41
| BCM starting
|
42
| Heated seats
|
43
| Tachograph
|
44
| Front windscreen wiper
|
45
| Heating, air conditioning system
|
