Fuse box

If any electrical component does not work, check the condition of the fuses.

Unclip the access flap A.

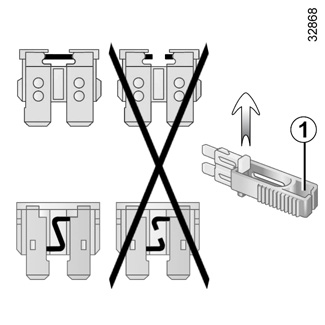

Tweezers 1

Remove the fuse using tweezers 1, located at the back of flap A.

To remove the fuse from the tweezers, slide the fuse to the side.

It is not advisable to use the free fuse locations.

In accordance with local legislation or as a precautionary measure:

Obtain an emergency kit containing a set of spare bulbs and fuses from an approved Dealer.

Check the fuse in question and replace it, if necessary, by a fuse of the same rating.

If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.

Allocation of fuses

(the presence and location of fuses depends on the vehicle equipment level)

1 Brake light;

2 Horn;

3 Instrument panel;

4 Automatic door locking;

5 Direction indicator lights;

6 Cigarette lighter;

7 Windscreen washer;

8 Radio;

9 Rear windscreen wiper;

10 Front ceiling light and boot light;

11 Pedestrian horn;

12 Brake switch;

13 Driver’s window winder;

14 Heated door mirrors.

Check the fuse in question and replace it, if necessary, by a fuse of the same rating.

If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
