Fuses in passenger compartment A

If any electrical component does not work, check the condition of the fuses.

Unclip the access flap A.

Clip 1

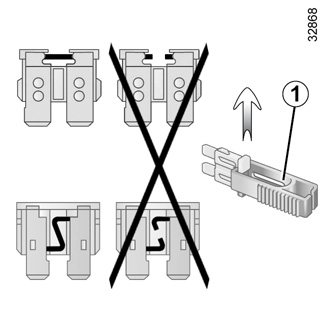

Remove the fuse using tweezers 1, located at the back of flap A.

To remove the fuse from the tweezers, slide the fuse to the side.

It is not advisable to use the free fuse locations.

Fuses in engine compartment B

Some functions are protected by fuses located in the engine compartment (unit B).

However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer.

To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.

Check the fuse in question and replace it, if necessary, by a fuse of the same rating.

If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.

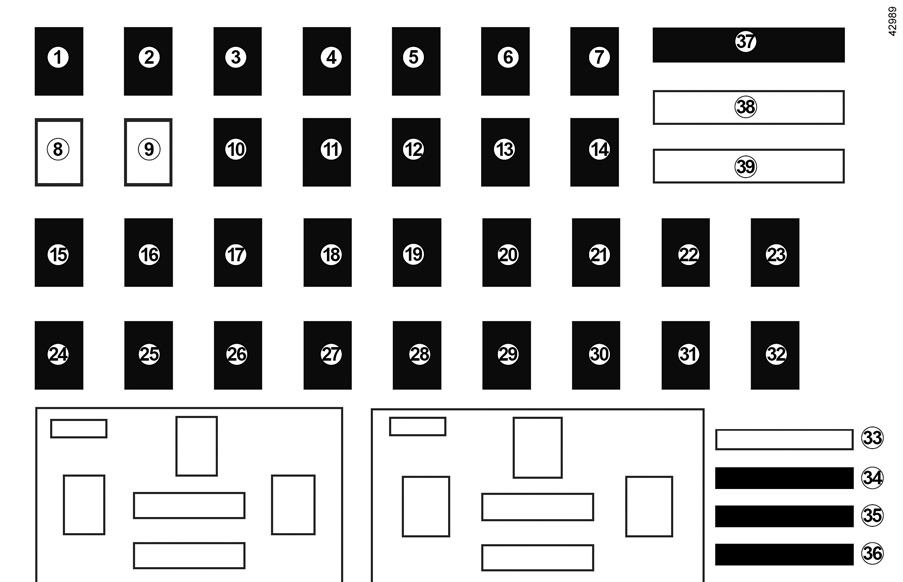

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

Number

Allocation

1

Radio,

heated seat,

power-assisted steering

2

Injection,

passenger compartment unit

3

Airbag,

electric locking of steering column

4

Automatic gearbox,

shift rules control

5

Dipped beam headlights

6

Rear accessories socket

7

Horn

8

Not used

Number

Allocation

9

Not used

10

Right-hand daytime running light,

front right-hand daytime running light,

right-hand headlight,

left-hand headlight,

Rear left-hand light

11

Rear accessories socket,

automatic climate control

12

Left-hand side lights,

front right and left side lights,

left-hand daytime running light,

right-hand main beam headlight

front left-hand daytime running light

right-hand headlight,

rear right-hand light,

left-hand headlight

13

Right-hand side lights,

front fog lights,

rear right and left side lights

14

Rear windscreen wiper

Number

Allocation

15

Power-assisted steering

16

Electric headlight beam adjustment,

heated seat control,

automatic gearbox,

heated screen,

additional heating,

Cruise control/Speed limiter on/off buttons,

belt warning module,

interior rear view mirror,

radio

17

Parking distance control,

belt warning module,

headlight adjustment,

additional heating,

Cruise control/Speed limiter on/off buttons,

interior rear view mirror

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)

Number

Allocation

18

Brake lights

19

Exterior rear view mirrors

20

ABS, ESC,

Brake switch

21

Interior lighting,

electric windows,

air conditioning,

passenger compartment temperature sensor

22

Vehicle Start/Stop button,

rain and light sensor,

steering wheel angle sensor,

driving mode control

23

Radio,

diagnostic socket

24

Passenger compartment ECU

25

Passenger compartment ECU

Number

Allocation

26

Direction indicator lights

27

Central locking of opening elements

28

Hands-free access

29

Front row cigar lighter,

accessories socket,

passenger compartment unit,

radio

30

Alarm,

lighting

31

Instrument panel

32

Cigarette lighter

33

Empty location

34

Front seat heating

Number

Allocation

35

Rear screen de-icing,

exterior rear view mirror

36

Towbar

37

Front windscreen wiper

38

Empty location

39

Not used
