Choice of breakdown service

In the event of an energy fault

In the event of a fully discharged traction battery, any type of towing is permitted: towing on a flatbed truck or towing on the road using the tow eye (please see following pages).

All other cases

Only towing on a flatbed truck is permitted.

Towing on a flatbed truck

Breakdown recovery must be performed on a flat surface under all circumstances except where the vehicle is immobilised following a full discharge of the traction battery. In the event of a total energy loss, please see the following pages.

Before repairs, insert the key in the ignition to unlock the steering column. Turn the key to position M.

The regulations in force for breakdown recovery must always be observed.

In the event of an energy fault: towing

In the event of a fully discharged traction battery:

- warning light Ṏ flashes on the instrument panel;

- battery warning light 1 on the instrument panel is empty.

It is possible to recover on a flatbed truck or tow the vehicle using the tow eye, following the instructions below.

Before towing, insert the key in the switch to unlock the steering column. Turn key to position M.

The column is unlocked, the accessory functions are supplied: the vehicle lights can be used (hazard warning lights, brake lights etc.). The towed vehicle’s lights must be switched on at night.

The speed specified by current legislation for towing must always be observed.

Access to the towing point

Remove:

- the bolts 4;

- the plastic clips 3;

- the clips 2 located under the front bumper. Lift up the bonnet.

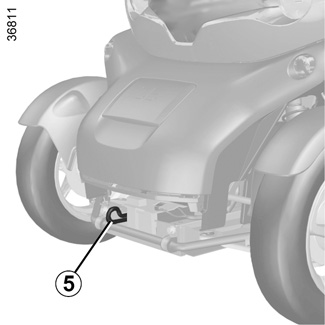

Only use the front towing point 5.

This towing point may only be used for towing: never use it for lifting the vehicle directly or indirectly.

Take care not to allow anything to hit the 12 volt battery during towing.

Do not remove the key from the ignition when the vehicle is being towed.
