Luggage cover

To roll up the luggage cover A

Using the handle 1, pull it gently to release the pins from their mounting points located on each side of the luggage compartment.

Guide the luggage cover using the handle 1.

Removing the luggage compartment cover

Push the luggage cover to the right (movement B) and lift the left-hand side of the inertia reel.

Refitting the luggage compartment cover

Insert the right-hand side, then push it to the right and lower the left-hand side of the inertia reel into its housing.

warning

Do not place any heavy or hard objects on the luggage cover. These may pose a risk to the vehicle occupants if the driver has to brake suddenly or if the vehicle is involved in an accident.

Transporting objects in the luggage compartment

Always position the objects transported so that the largest surface is against:

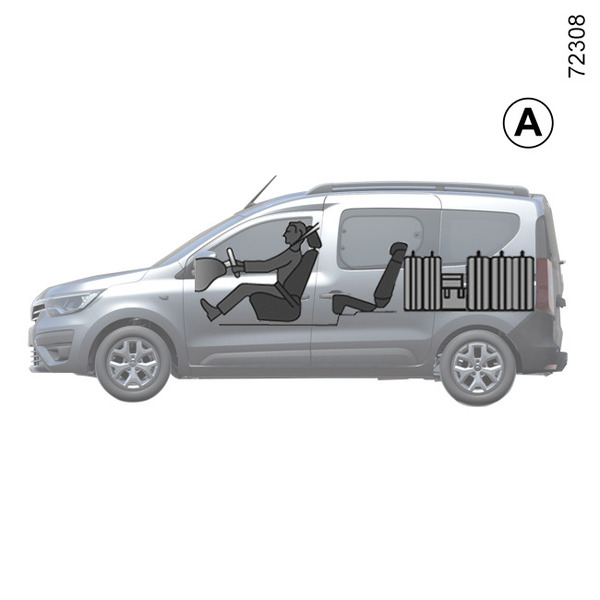

the rear bench seatbacks, for normal loading (example A);

the front seatbacks with the rear seatbacks folded down, as is the case for maximum loads (example B) Rear bench seat: functions.

Ensure that the objects being transported are evenly distributed throughout the loading area.

If you have to place objects on the folded seat back, it is vital that you remove the headrests before folding the seat back so that it can be folded as flat as possible against the seat.

warning

Always position the heaviest items directly on the floor. Use the lashing points on the luggage compartment floor, if these are fitted to the vehicle. The load should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly or while driving on a steep gradient. Fasten the rear seat belts, even if the seats are not occupied.

Transporting objects in the rear load area

Depending on the vehicle, fixed rings 1 and rotary rings 2 can be used to retain objects during transportation. The number of rings and their position may vary depending on the vehicle.

tip

The sole purpose of these rings 1 is to prevent transported objects from moving. The objects must be secured to the mounting rings 2 on the vehicle floor beforehand.

Special note for van version

Rotary rings 2:

Fmax : 400 daN

warning

For your safety, check that all the vehicle’s doors are properly closed before starting the engine.

warning

While driving with the right rear hinged door open, always secure transported loads. The left-hand door, which remains shut, should not be used to hold transported loads in place. Using the right rear hinged door open while driving should only be done in exceptional cases.

In any event, please refer to local legislation. Risk of loads falling on the road surface.
