Mobile floor 1
(depending on the vehicle)
Mobile floor 1 position can be changed as below.
Flat position A
Enables you to flatten the floor by folding down the back of the rear bench seat and to compartmentalise the boot into two distinct spaces.
The mobile floor is positioned on the runner.
Intermediate position B
In the position A, it allows you to use under the floor 1 and access the tools stored under the boot carpet.
tip
Maximum weight for the mobile floor : 100 kg evenly distributed.
Storage position C
This position allows for more space to store things in the boot.
tip
When removing the mobile floor out of the luggage compartment, lift it by more than 30 degrees. If it is not lifted enough, damage may occur around the tailgate.

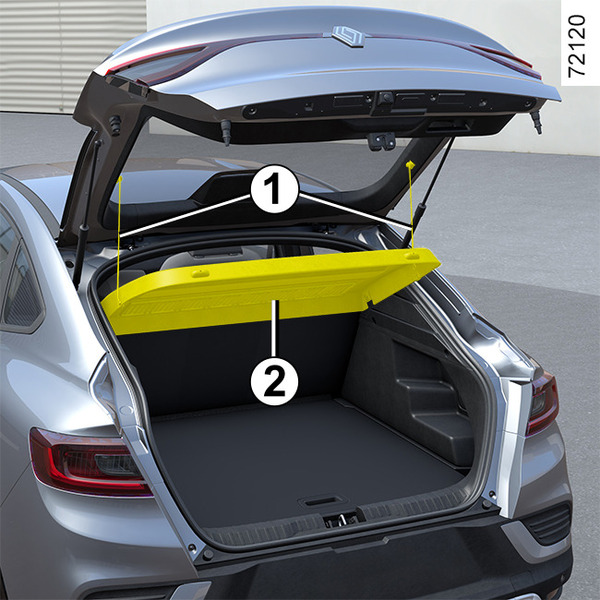

Rear parcel shelf
Removal
- Unhook the two straps 1 of the door of the boot ;
- lift the shelf 2 to unclip it (movement A) ;
- pull the shelf towards you.
To refit, proceed in the reverse order to removal.
warning
Do not place any heavy or hard object on the parcel shelf. These may pose a risk to the vehicle occupants if the driver has to brake suddenly or if the vehicle is involved in an accident.
Transporting objects in the luggage compartment
Always position the objects transported so that the largest surface is against :
the rear bench seatback, for normal loading (example A)
the front seatbacks with the rear seatbacks folded down, as is the case for maximum loads (example B)
Ensure that the objects being transported are evenly distributed throughout the loading area.
If you have to place objects on the folded seatback, it is necessary that you lower the headrests before folding the seatback so that it can be folded as flat as possible against the seat.
Note : in the absence of an emergency spare wheel or tyre inflation kit, do not load the bottom of the luggage compartment.
