Storage under the carpet

To gain access to this, lift the luggage compartment carpet 1 using the tab2.

The false floor can be attached using the hook 4 in the housing 3.

tip

Always position objects being transported so that the heaviest items are resting against the back of the rear bench seat.

Anchorage points

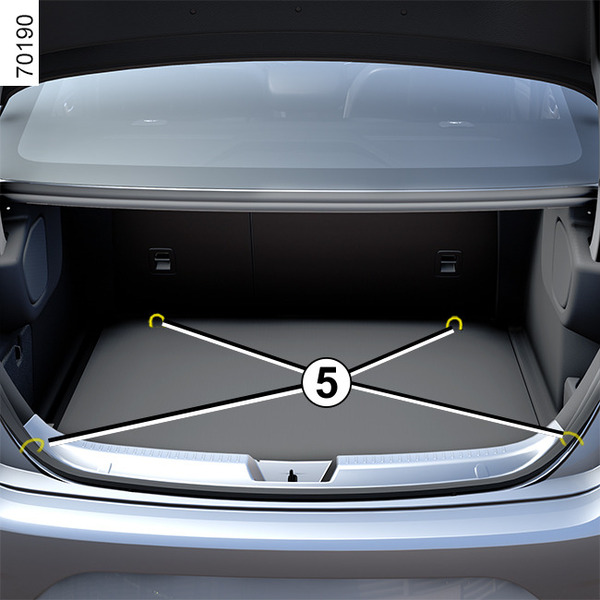

Attachment points 5.

warning

Always position the heaviest items directly on the floor. If the vehicle is equipped, use the lashing points 5 located on the luggage compartment floor. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.

tip

If your vehicle is not equipped with anchorage points, you can get them from an authorised dealer.

tip

Always position objects being transported so that the heaviest items are resting against the back of the rear bench seat.

Transporting objects in the luggage compartment

Always position the objects transported so that the largest surface is against:

  • the back of the rear bench seat, for normal loading (example A);

  • the front seatbacks with the rear seatbacks folded down, as is the case for maximum loads (example B).

Ensure that the objects being transported are evenly distributed throughout the loading area.

If you have to place objects on the folded seat back, it is vital that you remove the headrests before folding the seat back so that it can be folded as flat as possible against the seat.

Note: in the absence of an emergency spare wheel or tyre inflation kit, do not load the bottom of the luggage compartment.

warning

Always position the heaviest items directly on the floor.

If the vehicle is equipped, use the lashing points 1 located on the luggage compartment floor.

The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly.

Fasten the rear seat belts, even if the seats are not occupied.
