Depending on the vehicle, this may be used when transporting animals or luggage to isolate them from the passenger section.
It can be positioned:
- behind the rear seats A;
- behind the front seats B.
warning
The luggage net is designed to retain a maximum weight of 10 kg.
Risk of injury.
Fitting the luggage net behind the front seats
Inside the vehicle on each side:
- lift the cover 1 to gain access to the anchoring points used to attach the top of the net;
- insert the upper rod of the net 2 into the anchoring points;
- attach the two hooks 4 of the net straps 3 to the anchoring points 5;
- adjust the net strap 3 so that it is taut.
Note: the anchoring points 5 are located under the carpet.
warning
Do not install the luggage net in this position when a passenger is occupying a rear seat
Fitting the luggage net behind the rear seats
Inside the vehicle, on each side:
- advance the second-row seats as far as possible;
- lift the cover 6 to access the rail used to attach the top of the net;
- insert the upper rod 7 of the net into the rail;

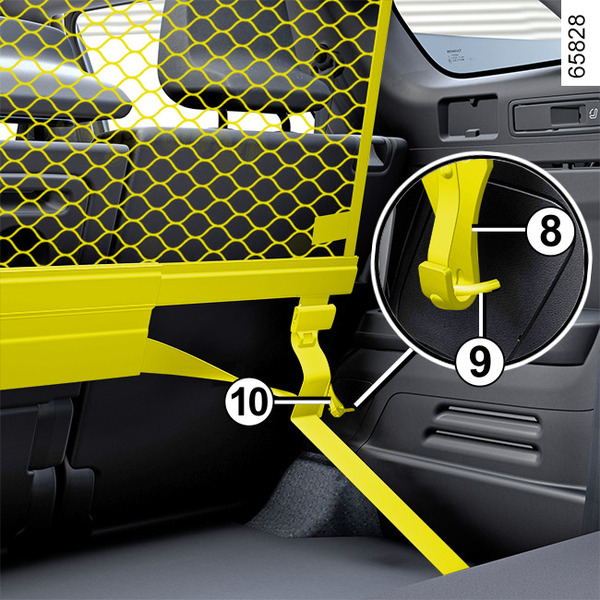

- attach the net strap hook 8 to the anchoring points 9 ;
- adjust the net strap 10 so that it is taut;
- adjust the position of the second row seats: ensure that the seatbacks do not touch the net.
