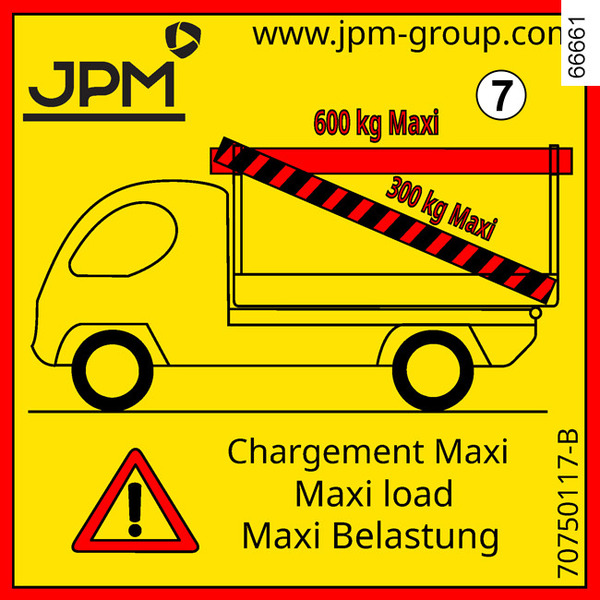

7
This label states that the maximum load of 300 kg supported by the ladder holder, or 600 kg in combination with the log carrier, must never be exceeded.

8
This label indicates the maximum permissible load for the lashing points of the tipper and the platform (400 daN, or 800 daN).

9
This label indicates that the circuit breaker must be opened after you have finished using the tipper and before driving.

10

This label indicates:

  • A: Do not stand between the chassis and the tipper body when it is raised, unless the safety prop 1 has been correctly positioned with the body unladen;
  • B: When not in use, the tipper body must be in the lowered position, resting on the subframe. Prolonged exposure of the cylinder rods to air can cause the cylinder to seize, which may lead to an increase in internal pressure and cause a sudden drop of the tipper body platform Stay.

11

Identification plate

12

This label indicates that the load distribution in the luggage compartment (supplied as an option) must be uniform and must not exceed 35 kg per shelf.

tip

IMPORTANT

Do not operate the tipping body without first having read and understood the user manual.

warning

DANGER

Only operate the tipping body on a flat stable surface. Move animals and persons away from the working area.

Non-appropriate use of the tipping body is forbidden.

warning

DANGER

When the tipping body is raised it is absolutely forbidden to lean under the flatbed.

tip

IMPORTANT

During maintenance work, always ensure that the safety bar is in place.

warning

The tipping body has warning labels drawing attention to operating risks that could involve a danger for the safety and health of personnel. The labels must be visible in all circumstances in the locations initially provided.
