Renault Master 4
Fuse box
If any electrical component does not work, check the condition of the fuses.
Unclip the flap A using the groove B.
To identify the fuses, refer to the fuse allocation label located on the back of flap A.
Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)
Tweezers 1
Disconnect the fuse using the tweezers 1 located at the back of flap A.
To remove the fuse from the tweezers, slide the fuse to the side.
It is not advisable to use the free fuse locations.
tip
To comply with legislation, or as a precaution, you can obtain an emergency kit containing a set of spare bulbs and fuses from an approved dealer.
Your vehicle is equipped with two fuse boxes in the passenger compartment and in the engine compartment.
warning
Check the fuse in question and, if necessary, replace it (replacement fuse must have the same rating as the original.
If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)
Icon | Allocation |
|---|---|
| Heated seats |
| Park Assist button/Front and rear side radars |
| Brake lights |
| Front row cigar lighter/Front row accessories socket |
| Rear fog lights |
| Hazard warning lights and high-level brake light |
| Radio |
|
|
| Multimedia accessories socket/Pre-equipment for accessories |
| Luggage compartment accessories socket/towbar socket |
|
|
| Dipped beam headlights/side lights |
| Alarm |
| One-touch electric windows for front passenger seat |
| Rear view mirror control |
| ABS/ESP |
| Instrument panel display |
| One touch electric windows for driver's seat |
| Heating and air conditioning system |
| Courtesy light |
| Airbag |
tip
Use the fuse allocation label in the storage compartment to identify the fuses.
Certain fuses should only be replaced by a qualified professional. These fuses are not listed on the label.
Only change the fuses represented on the label.
Fuses in the engine compartment
warning
Before carrying out any action in the engine compartment, you must switch off the ignition Starting, stopping the engine.
warning
No operations should be carried out on the cooling circuit when the engine is hot.
Risk of burns.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
warning
Deactivate the Stop and Start function for any operation performed in the engine compartment.
Some functions are protected by fuses located in the engine compartment (unit C).
However, because of their reduced accessibility, you are advised to have these fuses replaced by an approved dealer.
Access to the fuse box
Unclip the clips 2 and remove the coolant reservoir 3.

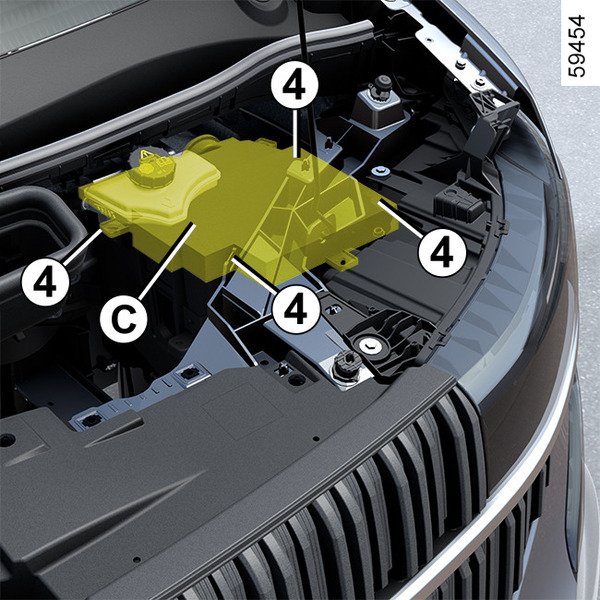

Removing the cover C
Unclip the clips 4 and remove the cover C.
Refitting the unit C
Return the unit C into place and fasten the clips 4 to ensure that the fuse box is completely sealed.
Position the coolant reservoir 3 then tighten the clips 2.
tip
Check that no water or dust enters unit while it is being removed/refitted.
Allocation of fuses: engine compartment
(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)
Icon | Allocation | Icon | Allocation |
|---|---|---|---|
| De-icing |
| Right-hand main beam headlight |
| Heating and air conditioning system |
| ABS |
| Right-hand dipped beam headlight |
| Windscreen wiper |
| Left-hand dipped beam headlight | ||
| Fog light | ||
| Left-hand main beam headlight |
