The presence of the tools depends on the vehicle.

Jack 1

Fold it correctly before refitting it in its housing (ensure that the wheelbrace is correctly positioned 2).

Hubcap tool 3

This is used to remove the wheel trims.

Screw guide 4

For tightening/loosening wheel bolts on vehicles fitted with alloy wheels

Towing hitch 5

Refer to the information on “Towing” in Section 5.

Wheelbrace 6

Locks or unlocks the wheel bolts and towing eye 5.

Storage bag

This allows you to store a punctured wheel in the boot.

Do not leave the tools unsecured inside the vehicle as they may come loose under braking. After use, check that all the tools are correctly clipped into the tool kit, then position it correctly in its housing: risk of injury.

If wheel bolts are supplied in the tool kit, you must use these bolts, and only these, for the emergency spare wheel: refer to the label affixed to the emergency spare wheel.

The jack is designed for wheel changing purposes only. Under no circumstances should it be used for carrying out repairs underneath the vehicle or to gain access to the underside of the vehicle.

5-seater version

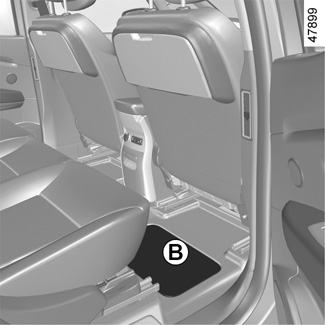

Depending on the vehicle, the bag 7 containing the tools is located under the luggage compartment carpet A or under the rear passenger foot flap B.

Bag 7 is held in place by a strap 8.

7-seater version

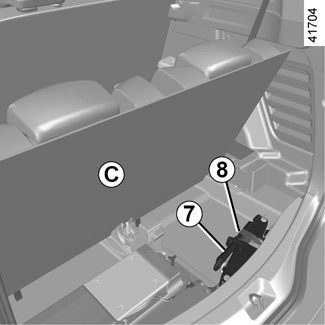

Lift the right rear third row seat C, loosen the strap 8 and remove the bag 7 containing the tools.

To put it back, fold the jack fully, then store it together with the other tools in the tool bag. Reposition the bag containing the tools into its housing. Check that the assembly is correctly positioned (to avoid noise).

After use, regarding the locations A and C, reposition the pocket 7 against the panel and tighten the strap 8 by pulling on its free end towards the vehicle interior.
