Fuses in passenger compartment A

If any electrical component does not work, check the condition of the fuses.

Unclip the access flap A.

Clip 1

Remove the fuse using tweezers 1, located at the back of flap A.

To remove the fuse from the tweezers, slide the fuse to the side.

It is not advisable to use the free fuse locations.

Fuses in engine compartment B

Some functions are protected by fuses located in the engine compartment (unit B).

However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved Dealer.

To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.

Check the fuse in question and replace it, if necessary, by a fuse of the same rating.

If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.

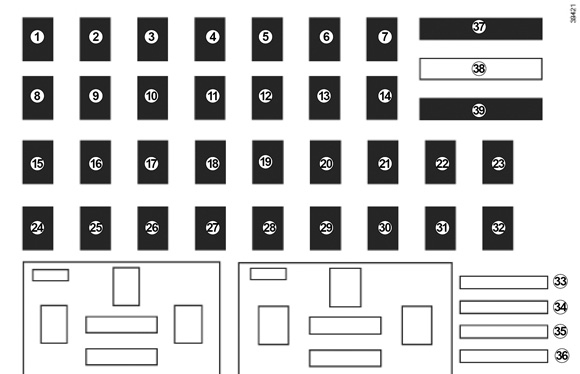

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)


Number

Allocation

1

Power-assisted steering,

Front seat heating,

Radio

2

Injection,

Daytime running lights

3

Airbag

4

Automatic gearbox

5

Dipped beam headlights

6

Front fog lights,

Side lights,

Main beam headlights

7

Horn

Number

Allocation

8

Rear windscreen wiper

9

Right-hand main beam headlight

10

Right-hand dipped beam headlight,

Right-hand daytime running light

11

Left-hand dipped beam headlight

12

Left-hand side lights,

Front right and left side lights

Left-hand daytime running light

13

Right-hand side lights,

Front fog lights,

Rear right and left side lights

14

Rear windscreen wiper

Number

Allocation

15

Central locking of opening elements

16

Electric headlight beam adjustment,

Injection

17

Daytime running lights,

Brake lights

18

Electric headlight beam adjustment,

Brake lights

19

Door mirrors

20

ABS, ESP

Allocation of fuses

(the presence of certain fuse depends on the vehicle equipment level)


Number

Allocation

21

Interior lighting

22

Vehicle On/Off button

23

Radio

24

Passenger compartment ECU

25

Passenger compartment ECU

26

Direction indicator lights

27

Central locking of opening elements

Number

Allocation

28

Front seat heating,

Additional heating,

Radio,

Daytime running lights,

Brake lights,

Reversing lights,

Headlight beam adjustment,

Dimmer switch,

Screenwash pump,

Front windscreen wiper,

Cruise control/Speed limiter on/off buttons,

Parking distance control,

Seat belt warning,

Interior rear-view mirror,

Power-assisted steering,

Starter,

Fuel pump,

Injection,

Automatic gearbox - Shift rules control,

Passenger compartment ECU,

Airbag,

Energy management

Number

Allocation

29

Front row cigar lighter,

Accessories socket,

Passenger compartment ECU,

Radio

30

Alarm

31

Instrument panel

32

Cigarette lighter

33

Rear fog lights

34

Front seat heating

35

Rear screen de-icer

36

Towbar

37

Front windscreen wiper

38

Empty location

39

Front windscreen wiper
