Front lights

The bulbs detailed below can be replaced. However, we recommend that these be replaced by an Approved Dealer if this proves difficult.

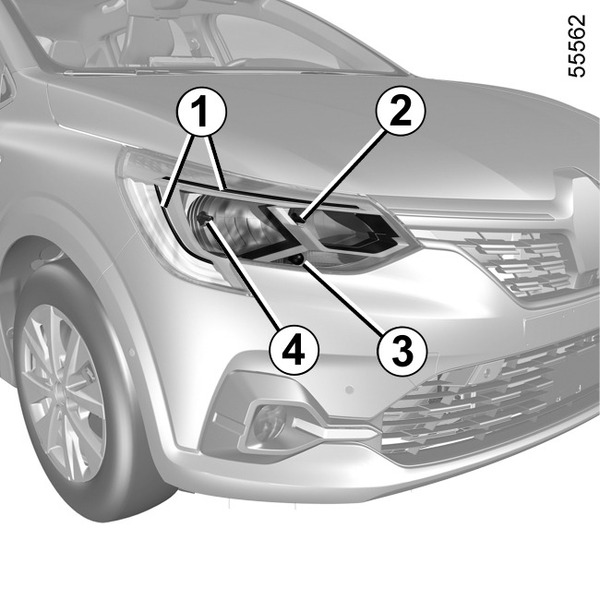

LED side lights/daytime running lights 1

The following bulbs can be replaced. However, we would advise you to have them replaced by an approved dealer if it proves difficult.

Main beam headlights 2

Remove the cover A.

Unclip the connector 5, remove the assembly from its housing and take out the bulb.

Bulb type: H7.

Do not touch the bulb glass. Hold it by its base.

Direction indicator lights 3

Turn the bulb holder 7 a quarter of a turn to access the bulb.

Bulb type: PY21W.

Dipped beam headlights 4

Remove the cover B.

Unclip the connector 6, remove the assembly from its housing and take out the bulb.

Bulb type: H7.

After replacing the bulb, please ensure that the lights are adjusted by a professional.

Front fog lights 8

Because of their reduced accessibility, we advise you to have your bulbs replaced by an approved Dealer.

  • Access the bulb holder by unclipping the flap 9;
  • turn the bulb holder by a quarter of a turn;
  • remove the bulb.

Bulb type: H16LL.

Additional lights

If you wish to fit fog lights to your vehicle, please consult an authorised dealer.

Rear and indicator lights

Side lights/brake lights, direction indicator lights and reversing lights

(depending on the vehicle)

Loosen the bolt 1, then remove the rear light unit from outside the vehicle.

Pull the tabs 2 to unclip the bulb holder.

To refit, proceed in the reverse order, taking care not to damage the wiring.

Check the tabs are correctly locked in position.

3.

Brake light or, depending on the vehicle, side light/brake light

Bulb type 3: P21/5W.

4.

LED side light

(depending on the vehicle)

Consult an approved Dealer.

5.

Reversing light

Bulb type 5: P21W.

6.

Indicator light

Bulb type 6: PY21W.

Rear fog lights 7

As the rear bumper needs to be removed, consult an Approved Dealer.

Bulb type 7: P21W.

High level brake light 8

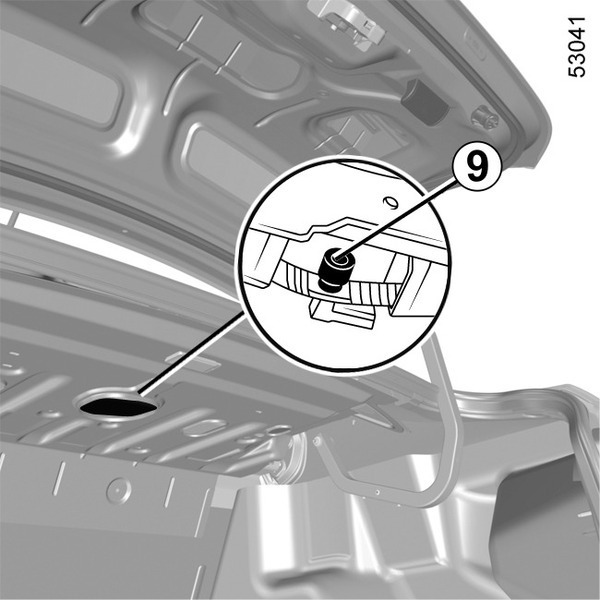

The bulb 9 of the high level brake light 8 can be accessed through the luggage compartment.

Bulb type 9: W16W.

Number plate lights 12

Unclip the light 12 by pressing the tab 10 using a flat-blade screwdriver or similar tool.

Unclip the lens 11 and remove the bulb 13.

Bulb type: W5W.

LED number plate lights 13

(depending on the vehicle)

Consult an approved Dealer.

Indicator lights 14

Unclip the direction indicator light 14 using a flat-blade screwdriver or similar tool positioned at A to lever the direction indicator light towards the outside of the vehicle.

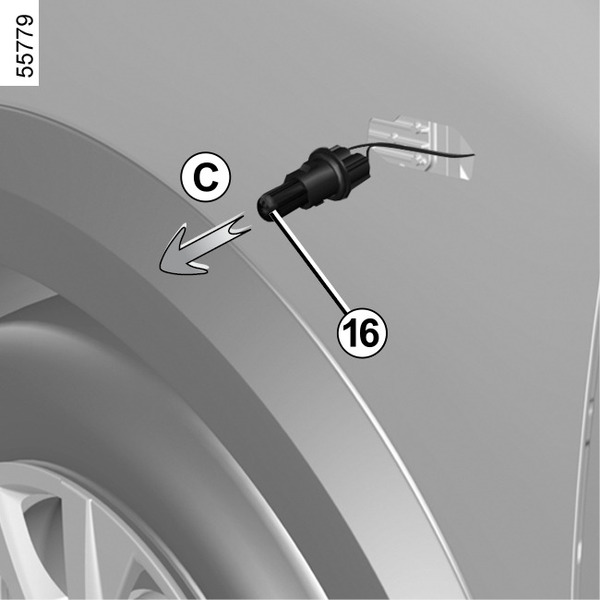

Make a quarter of a turn (movement B) on the bulb holder 15 and remove the bulb 16 (movement C).

Bulb type: WY5W.

Replace the bulb and refit the indicator light.
