Air outlets

1
Left-hand air vent.
2
Left-hand side window demisting vent.
3
Windscreen demister outlets
4
Centre air vents.
5
Control panel
6
Right-hand side window demisting vent.
7
Right-hand air vent.
8
Front passenger footwell heater vent.
9
Central air vents for rear occupants (depending on vehicle).
10
Rear passenger footwell heater vent.

central air outlets 4 and side outlets 1 and 7

Air flow

Air outlet1

Opening: Move cursor 10 out of the vehicle.

Closing: Move cursor 10 towards the interior of the vehicle as far as possible.

Air outlet7

Opening: Move cursor 11 out of the vehicle.

Closing: Move cursor 11 towards the interior of the vehicle as far as possible.

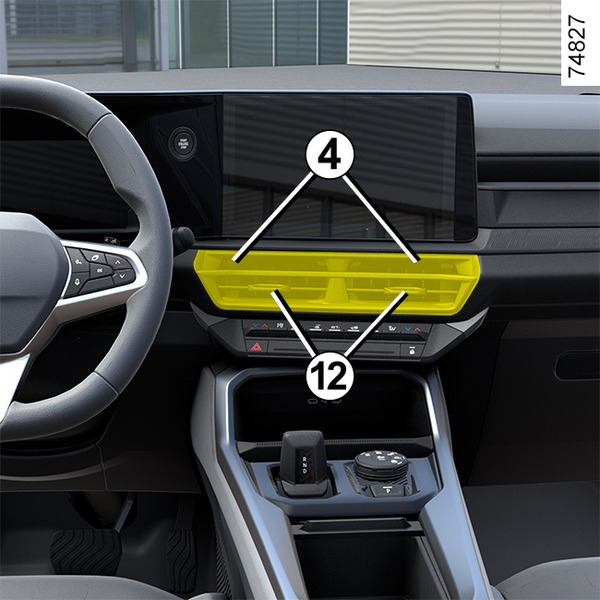

Air vents 4

Opening: Move cursor 12 out of the vehicle.

Closing: Move cursor 12 towards the interior of the vehicle as far as possible.

warning

Do not introduce anything into the vehicle ventilation circuit (for example, in the case of bad odours etc.).

Risk of damage or fire.

tip

Do not attach any objects to the air vents (e.g. phone holder).

Risk of damage.

tip

To remove bad odours from your vehicle, only use the systems specifically designed for this purpose.

consult an approved dealer.

Rear seats

(depending on the vehicle)

Direction

To direct the airflow, rotate the air vents 9 using the sliders 13.

Air flow

To check the flow of the air vents 9 turn the knob 14 in accordance with the desired opening:

  • upward: maximum flow;
  • down: closed.
warning

Do not introduce anything into the vehicle ventilation circuit (for example, in the case of bad odours etc.).

Risk of damage or fire.
