General information

warning

Driver's responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Key, radio frequency remote control A (combi version)

1.

Locks all the opening elements.

2.

Unlocking the doors and luggage compartment.

3.

Locking/unlocking using the switchblade key. To release the insert from its housing, press the button 3 and it will come out. Press the button 3 and guide the insert back into its housing.

4.

Driver’s door and ignition key.

5.

Unlocking the luggage compartment only.

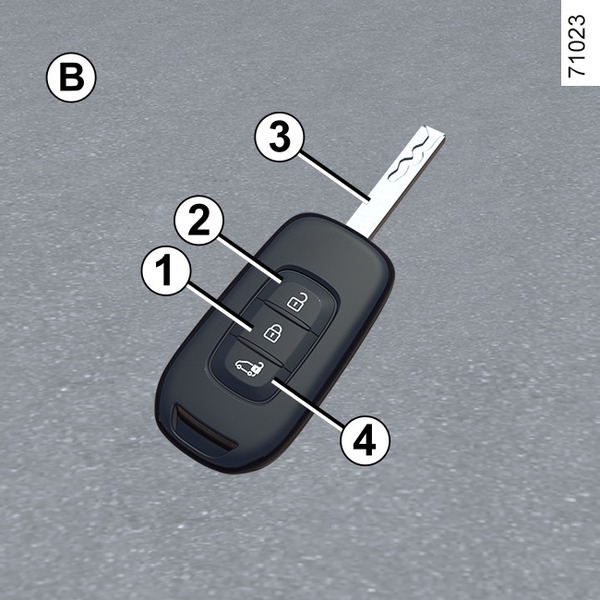

Key, radio frequency remote control B (combi version)

1.

Locks all the opening elements.

2.

Unlocking the doors and luggage compartment.

3.

Driver’s door and ignition key.

4.

Unlocking the luggage compartment only.

Key, radio frequency remote control C (van version)

1.

Locks all the opening elements.

2.

Unlocking the doors and luggage compartment.

3.

Locking/unlocking using the switchblade key. To release the insert from its housing, press the button 3 and it will come out. Press the button 3 and guide the insert back into its housing.

4.

Driver’s door and ignition key.

5.

Unlocking the luggage compartment only.

tip

There are two ways to use the remote control: access mode and secure mode.

To switch between the remote control modes of use, access the "ACCESS" menu from the trip computer or the multimedia screen, depending on the vehicle Vehicle settings personalisation menu.

Key, radio frequency remote control D (van version)

1.

Locks all the opening elements.

2.

Unlocking the doors and luggage compartment.

3.

Driver’s door and ignition key.

4.

Unlocking the luggage compartment only.

tip

There are two ways to use the remote control: access mode and secure mode.

To switch between the remote control modes of use, access the "ACCESS" menu from the trip computer or the multimedia screen, depending on the vehicle Vehicle settings personalisation menu.

Interference

Interference by factors in the immediate vicinity (external installations or the use of equipment operating on the same frequency as the remote control) may affect the operation of the remote control.

tip

The key must not be used for any function other than those described in the handbook (removing the cap from a bottle, etc.).

tip

Replacement and additional keys or remote controls

You must only contact an approved Dealer:

  • if you need to replace a key, it will be necessary to take the vehicle and all of its keys to an approved Dealer in order to initialise the system;
  • depending on the vehicle, you have the option of using up to four remote controls.

Remote control unit failure

Always make sure that the correct battery type is being used, and that the battery is in good condition and inserted correctly. These batteries should have a service life of approximately two years.

How to change the battery Radio frequency remote control: battery.

tip

Recommendations

Avoid leaving the remote control in hot, cold or humid areas.

Radio frequency remote control operating range

This varies according to the environment: take care not to lock or unlock the doors accidentally by inadvertently pressing the buttons on the remote control.

Note: if a door or the luggage compartment door is open or not properly shut, the vehicle will not be locked. The hazard warning lights and indicator lights do not flash.

Use

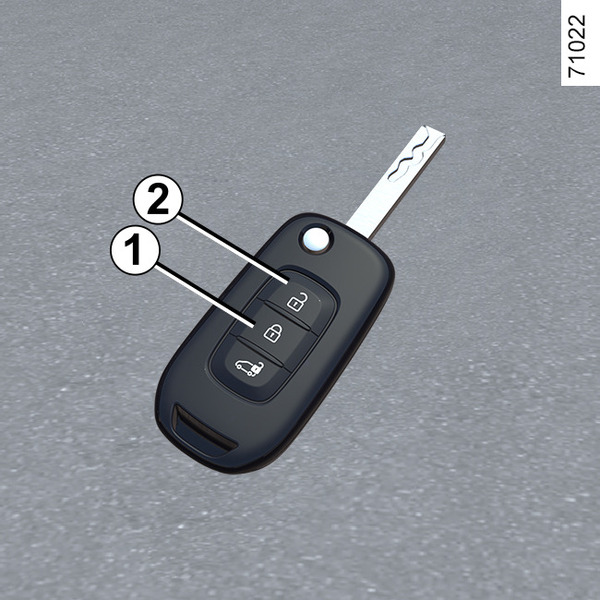

Remote control A or, depending on the vehicle, remote control B can be used to lock or unlock the opening elements. It is powered by a battery which must be replaced Radio frequency remote control: battery.

Locking the doors

Press locking button 1.

The hazard warning lights and side repeaters flash twice to indicate that the doors have locked and, depending on the vehicle, the door mirrors fold in automatically.

Note: if a door or the luggage compartment door is open or not properly shut, the vehicle will not be locked. The hazard warning lights and indicator lights do not flash, and no beep sounds.

Unlocking the doors

The hazard lights and side repeaters flash once to indicate that the doors have unlocked and, depending on the vehicle, the door mirrors fold out automatically.

Combi version

Press button 2 to unlock all of the opening elements.

Van version

Press button 2 to:

  • unlock all of the opening elements, in access mode;
  • unlocking the front doors and, depending on the vehicle, the sliding side door in Secure mode.
tip

Depending on the vehicle, the door mirrors fold in/out automatically when the vehicle is locked/unlocked Rear view mirrors.

tip

With the engine running and the ignition on Running in, the remote control buttons are inactive.

warning

Driver's responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone in your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Unlocking the luggage compartment only (combi version)

Using remote control A or B, press button 3 to unlock the luggage compartment door only.

Unlocking the loading area (van version)

Using remote control A or B, press button 3 to unlock the sliding side doors and the rear hinged doors or the tailgate.

tip

Remote controls A or B van version

There are two ways to use the remote control: access mode and secure mode.

To switch between the remote control modes of use, access the "ACCESS" menu from the trip computer or the multimedia screen, depending on the vehicle Vehicle settings personalisation menu.

Note: in the event of disconnection/replacement of the 12 Volt battery, the ACCESS mode will be reconfigured by default.

Deadlocking

warning

Never use deadlocking if someone is still inside the vehicle.

Special note: deadlocking is not possible if the hazard warning lights or the side lights are lit.

Activation/deactivation

To activate deadlocking

Press button 1 twice in quick succession.

Locking is confirmed by two slow flashes and three quick flashes of the hazard warning lights and side indicator lights.

Depending on the vehicle, the door mirrors may fold in automatically when the vehicle is locked Rear view mirrors.

To deactivate deadlocking

Press button 2 once. The hazard warning lights flash once to indicate that the doors have been unlocked.

Radio frequency remote control: battery

warning

When replacing:

  • make sure that the batteries are correctly inserted;

Risk of explosion.

  • if the flap does not close correctly, do not use and keep out of reach of children.
warning

Precautions relating to batteries:

  • keep batteries (new or used) out of reach of children;
  • do not swallow batteries;

Risk of chemical burns which may lead to death.

  • if ingested or inserted into any part of the body, consult a doctor as soon as possible.

Replacing the battery

Open the case at slot 1 using a flat-blade screwdriver or similar tool and replace the battery 2 observing the type and polarity shown on the back of the cover.

warning

If they need to be replaced, be sure to use the same or equivalent type of battery (consult an Approved Dealer).

When refitting, ensure that the cover is correctly clipped on and the screw tightened.

Note: it is not advisable to touch the electronic circuit in the key cover when replacing the battery.

tip

When refitting, ensure that the cover is correctly clipped on and the screw tightened.

Operating faults

If the battery is too weak to ensure correct operation, you will still be able to start and lock/unlock the vehicle Central locking, unlocking of the opening elements.

tip

The batteries are available from approved Dealers, and their service life approximately two years.

Check that there is no dye on the battery: risk of an incorrect electrical contact.

tip

Do not throw away your used batteries as rubbish.

Take them to an approved Dealer or consult your local authority for information on appropriate recycling facilities.
