General information

1.

Unlocking the doors and luggage compartment.

2.

Locking the doors and tailgate.

3.

Unlocking/locking the boot.

4.

Switching on the lights remotely.

The card can be used for:

Range

Make sure that the correct battery type is being used, and that the battery is in good condition and inserted correctly. It has a service life of approximately two years: replace it when the message "Keycard Battery Low" is displayed on the instrument panel Replacing the battery.

card operating range

Varies by environment: be careful not to accidentally lock or unlock the vehicle by inadvertently pressing the buttons on the card.

Note: if an opening element (door or boot lid) is open or incorrectly closed, locking will not be successful and a beep will sound.

Interference

Interference by factors in the immediate vicinity (external installations or the use of equipment operating on the same frequency as the card) may affect the card's operation.

tip

If the battery is flat, you can still lock/unlock and start the vehicle Locking, unlocking the opening elements and doors .

"Remote Lighting" Function

Press button 4 to switch on the side lights and dipped-beam headlights for approximately 20 seconds. This is designed, for instance, to help you identify your vehicle from a distance when parked in a car park.

Note: press button 4 again to turn off the lighting.

tip

Recommendations

Do not keep the card in a place where it could be bent or damaged accidentally, such as in your back pocket.

tip

Replacement: need for an additional card

If you lose your card or require another, you can only obtain one from an Approved Dealer.

If a card is replaced, it will be necessary to take the vehicle and all of its cards to an approved Dealer to initialise the system.

Up to four cards per vehicle can be used.

warning

Driver’s responsibility when parking or stopping the vehicle

When leaving the vehicle, never leave children, a dependent adult or animals alone inside it, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the window controls or locking the doors.

Also, in hot and/or sunny weather, remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Installing a strip 7

Slide the rear casing 5 down by pressing area A.

tip

Never insert a screwdriver-type tool into the opening 6.

Insert the hand strap into component 8 and thread the end of the strap through the loop.

Position the hand strap in opening 6 and close the casing.

Note: check that the hand strap cord 7 fits into the opening 6.

Use

Deactivating/activating "hands-free" mode

Depending on the vehicle, you can deactivate/activate unlocking when approaching and locking when moving away from the vehicle.

You can also deactivate/activate the beep emitted when locking as you move away from the vehicle .

Using the "hands-free" card

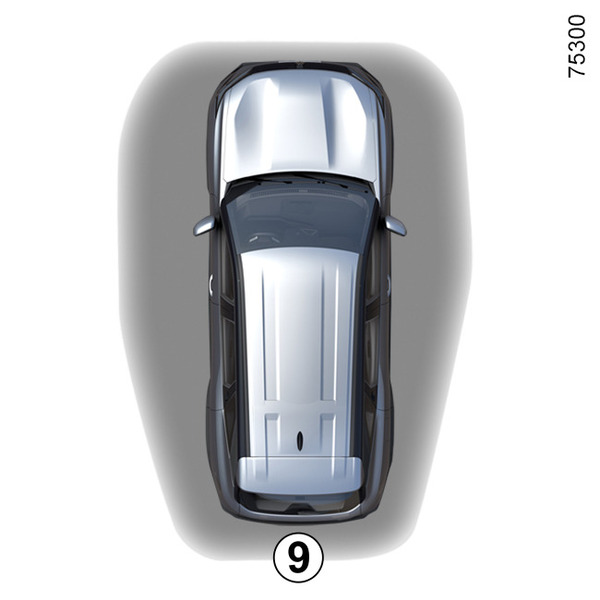

In "hands-free" mode, you can lock/unlock the vehicle without using the buttons on the card, provided you are within the access zone 9.

Note: if the vehicle has not been used for more than eight days, the "hands-free" system goes on standby. To reactivate it, press the unlock button on the card.

"Hands-free" unlocking when approaching the vehicle

With the card in the access zone 9, the vehicle will be unlocked.

The hazard warning lights and indicator lights flash once to indicate unlocking.

"Hands-free" locking when moving away from the vehicle

With the card on you and the doors and boot closed, move away from the vehicle: it will be automatically locked as soon as you leave access zone 9.

Note: the locking distance depends on the area surrounding the vehicle.

The direction indicator lights and the warning lights flash twice to indicate that the doors are locked.

Unlocking is confirmed by a beep.

Special features of the unlocking system

After eight days without use, approach unlocking is deactivated.

Use the card as a remote control to unlock the vehicle and reactivate "hands-free" mode.

Locking system special features

If a door is open or not fully closed, the vehicle will not lock when you move away from it.

Special features related to "hands-free" locking

After locking in "hands-free" mode, you will have to wait approximately three seconds before you can unlock the vehicle. During these three seconds, the door handles can be checked to ensure that the vehicle is properly locked.

If the card remains in detection zone 9 for approximately 15 minutes, remote locking is deactivated. To lock the vehicle, press the button 2 on the card.

The vehicle cannot be locked remotely if the card is inside zone 10. If you unlock the vehicle by pressing the card button but do not open the doors or boot lid, "hands-free" remote locking is deactivated.

warning

Driver’s responsibility when parking or stopping the vehicle

When leaving the vehicle, never leave children, a dependent adult or animals alone inside it, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the window controls or locking the doors.

Also, in hot and/or sunny weather, remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Using the card as a remote control.

Unlocking using the card

Press the button 1. The hazard warning lights and indicator lights flash once to indicate unlocking.

In the case of a vehicle equipped with an automatic boot lid, hold down button 3 to unlock the vehicle and open the boot.

Pressing button 3 again closes the automatic boot lid but does not lock the vehicle. To lock the vehicle, press button 2.

If an attempt is made to open a door using the handle at the same time as the doors are unlocked remotely, the door concerned will remain locked. To rectify this, release the door handle and unlock the vehicle again by pressing the button 1 on the card.

Locking with the card

With the doors and boot closed, press button 2: the vehicle will be locked. The direction indicator lights and the warning lights flash twice to indicate that the doors are locked.

Note: the maximum distance from which the vehicle can be locked depends on the surrounding area.

Special instructions

The vehicle cannot be locked if one of the opening elements (door or luggage compartment door) is open or incorrectly closed: a beep will sound.

tip

The card buttons are deactivated when the engine is running.

With the engine running, if a door is open and the card is no longer in zone 10, message "Keycard Not Detected" will indicate that the card is no longer inside the vehicle. This will prevent you from driving away after dropping off a passenger who has taken the card with them, for example.

The warning disappears when the card is detected again.

Closing/opening windows

Press and hold button 1 on the card to open the 4 front and rear windows.

Press and hold button 2 on the card to close the 4 front and rear windows.

Locking/unlocking the boot only.

In the case of a vehicle equipped with a manual (non-motorised) boot lid, press button 3 to only lock/unlock the boot.

warning

Driver’s responsibility when parking or stopping the vehicle

When leaving the vehicle, never leave children, a dependent adult or animals alone inside it, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the window controls or locking the doors.

Also, in hot and/or sunny weather, remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

"Hands-free" card: battery

Operating faults

Even if the battery is too weak to ensure correct operation, you will still be able to start and lock/unlock the vehicle Locking, unlocking the opening elements and doors.

warning

When the battery needs to be replaced, be sure to use the same or an equivalent type (consult an approved dealer).

warning

When changing:

  • ensure that the batteries have been inserted correctly.

Risk of explosion.

  • if the cover does not close properly, do not use it and keep it out of the reach of children.

Replacing the battery

When the message "Keycard Battery Low" is displayed on the instrument panel, replace the card battery:

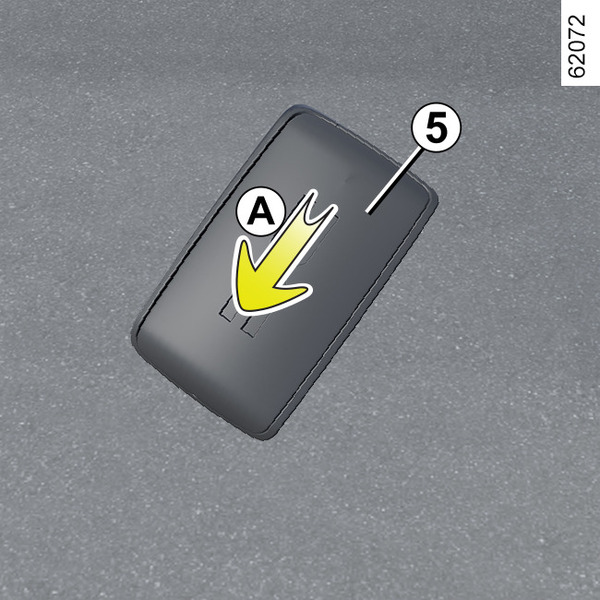

  • slide the rear casing 5 downwards while pressing area A.

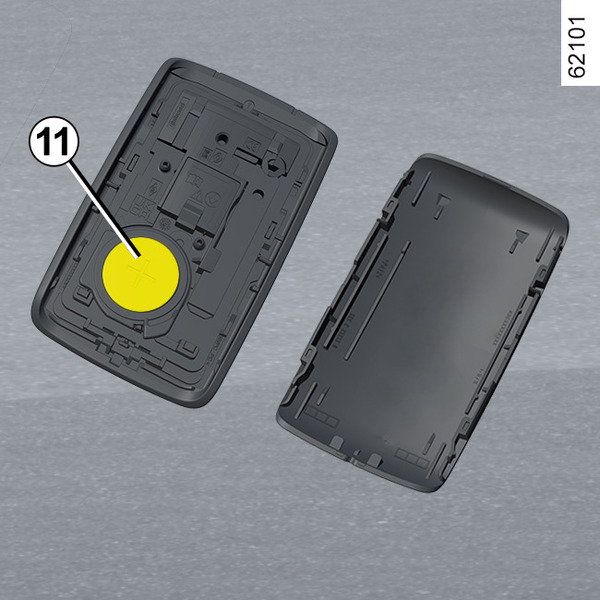

  • remove the battery cover 11;
  • remove the battery by pressing down on one side and lifting the other;
  • replace according to the directions and design shown inside the cover.

To refit the cover, proceed in reverse order, then press one of the buttons on the card four times while close to the vehicle: the next time the vehicle is started, the message will disappear.

Check that the cover is clipped shut.

Note: when changing the battery, do not touch the electronic circuit or the battery contacts in the card.

warning

Warnings about the batteries:

  • keep all batteries (whether new or used) out of the reach of children;
  • do not swallow batteries;

Risk of chemical burns that could be life-threatening.

  • If a battery is swallowed or inserted into any part of the body, see a doctor as soon as possible.
tip

The batteries are available from approved Dealers, and their service life approximately two years. Check that there are no signs of battery leakage: risk of poor electrical contact.


tip

Do not dispose of your used batteries as household waste. Take them to an Authorised Dealer or consult your local authority for information on recommended recycling facilities.
