Renault Kardian
System A
Operating principle
Ultrasonic sensors, indicated by arrows 1 are fitted in the rear bumper to "measure" the distance between the vehicle and an obstacle when the vehicle is reversing.
This measurement is indicated by beeps which become more frequent the closer you come to the obstacle, until they become a continuous beep when the vehicle is approximately 30 centimetres from the obstacle. Stop as soon as traffic conditions allow.
There is a beep when reverse gear is engaged.
If the beep sounds for a long time (about 3 seconds), this signals an operating fault.
The function does not take into account towing or carrying systems that are not recognised by the system.
warning
This function is an additional driving aid.
Under no circumstances should it replace the driver's care or responsibility whilst reversing.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.
Location of the ultrasonic sensors 1
Ensure that the ultrasonic sensors indicated by the arrows 1 are not obscured (by dirt, mud, snow, a badly fitted/attached number plate, etc.), impacted, modified (including paintwork) or obstructed by any accessory fitted to the rear and/or, depending on the vehicle, to the front or sides of your vehicle.
Deactivating the system
You can deactivate the system by pressing switch 2.
The indicator light above switch 2 stays on permanently.
The deactivated system can be reactivated by pressing the switch again.
Deactivating the parking distance control manually
If towing, carrying or trailer equipment is present in front of the ultrasonic detectors, you must deactivate the system.
Operating faults
When the system detects an operating fault, a beep sounds for about three seconds as a warning. Consult an approved dealer.
Interference
Interference by factors in the immediate vicinity (external objects or the use of devices operating with ultrasonic detectors) may disrupt the system's operation.
warning
An impact to the underside of the vehicle while manoeuvring (e.g. striking a post, raised kerb or other street furniture) may result in damage to the vehicle (e.g. deformation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved dealer.
System B
Operating principle
Ultrasonic sensors, indicated by arrows 3, are fitted in the bumpers to measure the distance between the vehicle and an obstacle.
Depending on the vehicle, the system detects obstacles in front and behind the vehicle.
The Park Assist system is only activated when the vehicle is driven at a speed below approximately 6 mph (10 km/h).
The parking distance control system does not take into account towing and load carrying systems etc.
This measurement is indicated by beeps which become more frequent the closer you come to the obstacle, until they become a continuous beep when the vehicle is approximately 20 to 30 centimetres from the obstacle.
warning
This function is an additional driving aid.
Under no circumstances should it replace the driver's care or responsibility whilst reversing.
The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.
Location of the ultrasonic sensors 3
Ensure that the ultrasonic sensors indicated by the arrows 3 are not obscured (by dirt, mud, snow, a badly fitted/attached number plate, etc.), impacted, modified (including paintwork) or obstructed by any accessory fitted to the rear and/or, depending on the vehicle, to the front or sides of your vehicle.

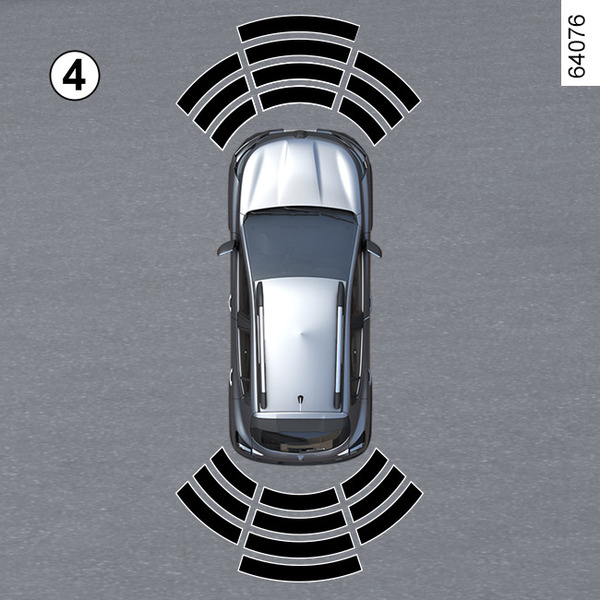

Note: the display 4 shows the vehicle surroundings and emits beeps.
warning
An impact to the underside of the vehicle while manoeuvring (e.g. striking a post, raised kerb or other street furniture) may result in damage to the vehicle (e.g. deformation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved dealer.
Operation
Most objects located near the front and rear of the vehicle are detected.
Depending on the distance of the obstacle, the frequency of the beep will increase as it approaches and will become a continuous beep at around 30 centimetres from an obstacle behind the vehicle or in front of it, depending on the vehicle. The green, orange (or yellow, depending on the vehicle) and red zones will be shown on the 5display.
Note: in the event of a change in trajectory during a manoeuvre, the risk of collision with an obstacle may be signalled late.
Activation/deactivation
Vehicles fitted with a multimedia screen 6
To activate or deactivate the various zones covered by the ultrasonic detectors from the multimedia screen, refer to the multimedia instructions.
Select "ON" or "OFF".
Adjustment
Vehicles fitted with a multimedia screen 6
Depending on the vehicle, while the engine is on some settings can be adjusted from the multimedia screen 6. Please refer to the multimedia instructions for further information.
Parking distance control audio volume
Adjust the volume of the Park Assist function by pressing "+" or "˗".
System sound
Enables the system sound to be chosen.
Deactivating the system sound
Activate or deactivate the parking distance control sound.
Note: if you deactivate the sound, you will no longer be notified with beeps when approaching an obstacle.
tip
When the vehicle is travelling at a speed below approximately 6 mph (10 km/h), some noises (motorcycle, lorry, pneumatic drill, etc.) may trigger the Park Assist system audible warnings.
warning
An impact to the underside of the vehicle while manoeuvring (e.g. striking a post, raised kerb or other street furniture) may result in damage to the vehicle (e.g. deformation of an axle).
To avoid any risk of accident, have your vehicle checked by an approved dealer.
Deactivating the parking distance control manually
You must deactivate the function:
- if towing, carrying or trailer equipment that is unrecognised by the system is present in front of the ultrasonic sensors;
- in the event of damage to the ultrasonic sensors.
Parking distance control automatic deactivation
The system is deactivated:
- when the vehicle speed is above approximately 6 mph (10 km/h);
- depending on the vehicle, when the vehicle is stationary for more than approximately five seconds and an obstacle is detected (such as when in a traffic jam, etc.);
- when the vehicle is in neutral for a manual gearbox or in position N or P for automatic gearboxes;
- when an operating fault is detected.
Note: if the vehicle is fitted with a towbar recognised by the system, only the rear Park Assist is deactivated.
Operating faults
When the system detects an operating fault, a beep sounds for approximately 3 seconds each time reverse gear is selected and is accompanied by the message “Check Park Assist” shown on the instrument panel. Consult an approved dealer.
Interference
Interference by factors in the immediate vicinity (external objects or the use of devices operating with ultrasonic detectors) may disrupt the system's operation.
Guidelines
tip
System servicing/repairs
- In the event of an impact, the alignment of the sensors may be altered and their operation may consequently be affected. Deactivate the function and consult an authorised dealer.
- Any work in the area where the sensors are located (repairs, replacements, etc.) must be carried out by a qualified professional.
Only an authorised dealer is qualified to service the system.
System disturbance
Some conditions can disrupt or damage the system operation, for example:
- poor weather conditions (rain, snow, hail, black ice, etc.);
- some types of noise (motorcycle, lorry, pneumatic drill, etc.);
- fitting a non-compatible towing ball or hook;
- ...
Risk of false alarms or absence of warnings
In the event of the system behaving abnormally, deactivate it and contact an authorised dealer.
tip
Limitation of the system operation
- The area around the sensors must be kept clean and free of any modifications in order to ensure the proper operation of the system.
- Small objects moving close to the vehicle (motorcycles, bicycles, pedestrians, etc.) may not be recognised by the system.
- The system may not detect objects that are too close to the vehicle.
- The system may not provide a warning when the other vehicles or objects are travelling at a significantly different speed.
- When there is a change in trajectory during a manoeuvre, the system may be slow in reporting obstacles.
- When the vehicle is towing a trailer, the rear Park Assist system must be deactivated.
Deactivating the function
You must deactivate the function if:
- the area around the sensors has been damaged;
- the vehicle is equipped with a towing device that is not recognised by the system (electrical adapter, ball, hook, etc.).
