Front electric windows


The electric windows operate with the ignition on or off, until one of the front doors is opened (limited to about 3 minutes).

Press the window switch down or pull it up to lower or raise the window to the desired height.

From the driver's seat

Press the switch:

  • 1 for the driver's side;
  • 2 for the front passenger's side;
  • 3 and 5 for the rear passengers.
warning

Passenger safety

The driver can deactivate operation of the rear passenger electric windows by pressing switch 4.

A confirmation message is displayed on the instrument panel.

warning

Driver's responsibility

Never leave your vehicle with the card or key inside, with a child, adult who is not self-sufficient or a pet in the vehicle, even for a short while.

They may pose a risk to themselves or to others by starting the engine or activating equipment (such as the electric windows or door locking button).

If any part of the body becomes trapped, reverse the direction of the window immediately by pressing the relevant switch.

Risk of serious injury.

From the front passenger seat

Press the switch 6.

Note: if the window detects resistance when almost fully closed (e.g. a tree branch), it stops and then lowers again by a few centimetres.

warning

When closing the windows, ensure that no part of the body (arm, hand, etc.) is protruding from the vehicle.

Risk of serious injury.

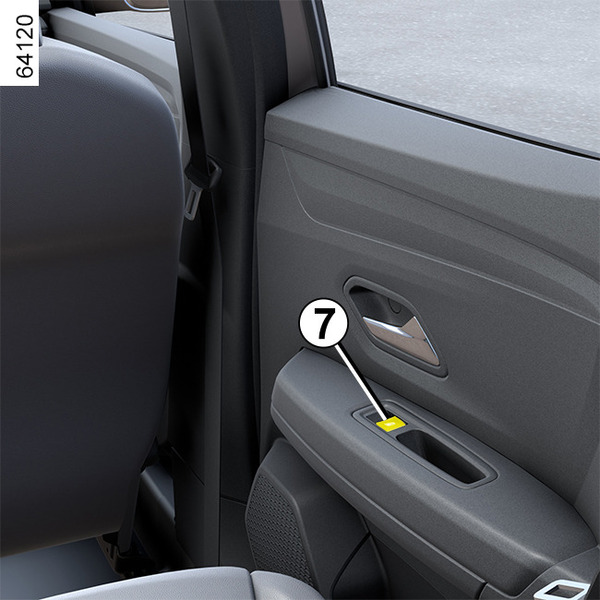

From the rear seats

Press the switch 7.

tip

Avoid resting any objects against a half-open window: there is a risk that the electric window could be damaged.

One-touch mode

This mode works in addition to the operation of the electric windows described previously.

Briefly press or pull a window switch as far as it will go: the window will be fully raised or lowered. Pressing the switch again stops the window moving.

Impossible to operate the one-touch electric window

The one-touch electric window is equipped with heat protection: if you press the switch for the window more than sixteen consecutive times it goes into protection mode (the window is locked).

You can:

  • use the electric window switch briefly and with intervals of approximately 30 seconds;
  • with the engine running, the window will be unlocked after approximately 20 minutes of inaction on the electric window switch.

Note: if the window detects resistance when closing (e.g. by a tree branch, etc.), it stops and then lowers again by a few centimetres.
