Before towing, set the gearbox to neutral (position N on vehicles with an automatic gearbox), unlock the steering column and then release the parking brake.

Steering column unlocking

Insert the key into the ignition and set it to the "On" position or, depending on the vehicle, with the card in the passenger compartment, press the engine start button for approximately 2 seconds.

Set the lever to neutral (position N for vehicles equipped with an automatic gearbox).

The steering column unlocks and the accessory functions are powered: you can use the vehicle's lights (direction indicators, brake lights, etc.). At night the vehicle must have its lights on.

Depending on the vehicle, once you have finished towing, press the engine start button twice (risk of running down the battery).

The speed specified by current legislation for towing must always be observed. If you are driving the towing vehicle, do not exceed the maximum towing weight for your vehicle Weights (in kg).

Towing a vehicle with an automatic transmission, mechanical lever

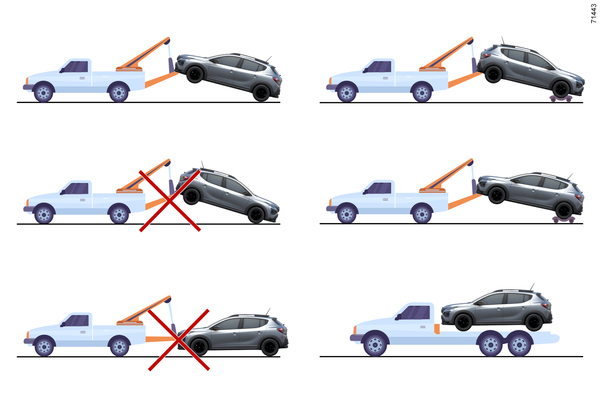

Transport the vehicle on a trailer or tow it with the front wheels off the ground.

Under exceptional circumstance, you may tow the vehicle with all four wheels on the ground, only going forward, with the gear lever in the neutral N and over a maximum distance of 50 miles (80 km) at a maximum speed of 16 mph (25 km/h).

warning

Do not remove the key from the ignition switch, or leave the card in the vehicle during towing (depending on the vehicle).

Risk of the steering column locking.

When setting off, if the lever is locked in position P when you press the brake pedal (e.g. battery fault), it is possible to manually release the lever to unblock the drive wheels. To do this, unclip the base of the gaiter and press the 1 push button while simultaneously pressing the 2 button on the lever to unlock the lever and shift to position N.

Contact your approved Dealer as soon as possible;


Use only the front 3 and rear 7 towing points (never use the drive shafts or any other part of the vehicle). These towing points may only be used for pulling. They must never be used for lifting the vehicle directly or indirectly.

warning

When the engine is stopped, steering and braking assistance are no longer provided.

Access to towing points


Front towing point

Press area A to tilt the flap 5 then hold it from the bottom to remove it.

Rear towing point

Insert a flat-blade screwdriver in notch C and press downwards, pulling out flap 6.

Screw in tow ring 4 as far as possible: first by hand until it stops then finish by locking it with the wheelbrace.

Use only the towing ring 4 and the wheelbrace Tools.

warning

Ensure that the towing ring is bolted correctly.

Risk of losing the towed object.

warning
  • Use a rigid tow bar. If a rope or cable is used (where the law allows this), the vehicle being towed must be able to brake.
  • a vehicle must not be towed if it is not fit to be driven.
  • avoid accelerating or braking suddenly when towing, as this may result in damage being caused to the vehicle.
  • In any case, it is advisable not to exceed 16 mph (25 km/h).
  • Do not push the vehicle if the steering column is locked.
warning

Do not leave the tools unsecured inside the vehicle as they may be projected during braking.
