Renault Kardian
Front headlights: replacing the bulbs
Daytime running lights/side lights, direction indicators 1 LED
Consult an approved dealer.
Dipped beam headlights 2 LED
Consult an approved dealer.
Main beam headlights 3 LED
Consult an approved dealer.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
warning
Any operation on (or modification to) the electrical system must be performed by an approved Dealer since an incorrect connection might damage the electrical equipment (harness, components and in particular the alternator). In addition, your Dealer has all the parts required for fitting these units.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
tip
To comply with current legislation, or as a precaution, you can obtain from your Approved Dealer an emergency kit containing a set of spare bulbs and fuses.
Front fog lights 4 LED
Consult an approved dealer.
Additional lights
If you wish to fit fog lights to your vehicle, please consult an authorised dealer.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
Rear lights and side lights: replacing bulbs
Rear side lights 5 LED
Consult an approved Dealer.
Brake lights, direction indicator lights and reversing lights
Loosen the bolts 6, then remove the rear light unit 7 from outside the vehicle.
- 8.
Brake lights
Bulb type: P21W.
- 9.
Direction indicators
Bulb type: PY21W.
- 10.
Reversing lights
Bulb type: W16W.
warning
Do not touch the exhaust.
Risk of burns.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
High-level brake light 11LED
Consult an approved Dealer.
Rear fog lights 12
Access the bulb holder located under the rear bumper, then unscrew it by turning towards the centre of the vehicle and remove the bulb.
Bulb type: W16.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.
warning
Any operation on (or modification to) the electrical system must be performed by an approved Dealer since an incorrect connection might damage the electrical equipment (harness, components and in particular the alternator). In addition, your Dealer has all the parts required for fitting these units.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
Number plate lights 13
- Unclip the light by pressing the tab 14;
- remove the light cover to gain access to the bulb.
Bulb type: W5W.
Indicator lights 15
As the door mirror shell needs to be removed, we advise you to have the bulb replaced by an approved dealer.
To access the bulb:

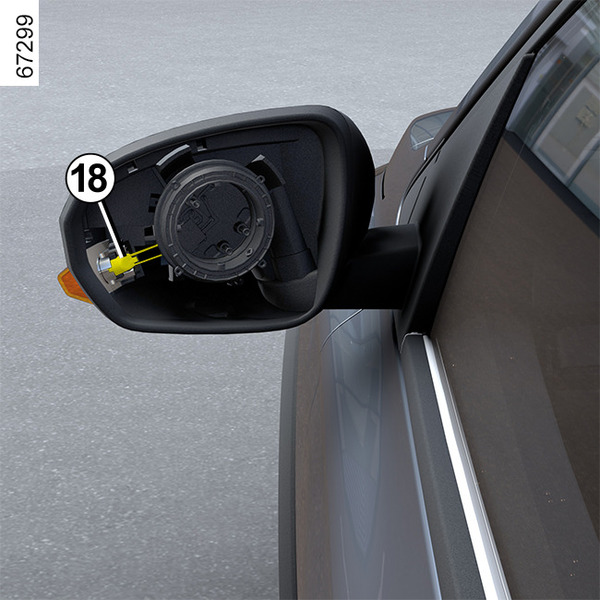

- carefully unclip the door mirror shell 17 from its base 16 (movement A);
- turn the lamp holder 18 and pull out the bulb 19.
Bulb type 19: WY5W.
To refit it, carry out the above operations in reverse order.
Make sure:
- that the bulb holder 18 is aligned correctly before inserting it into its housing;
- that the door mirror shell 17 clips properly onto its base 16.
When disassembling and refitting, ensure that the wiring and the surrounding components are not damaged.
warning
The bulbs are under pressure and may break when replaced.
Risk of injury.
tip
To comply with current legislation, or as a precaution, you can obtain from your Approved Dealer an emergency kit containing a set of spare bulbs and fuses.
