Renault Kardian

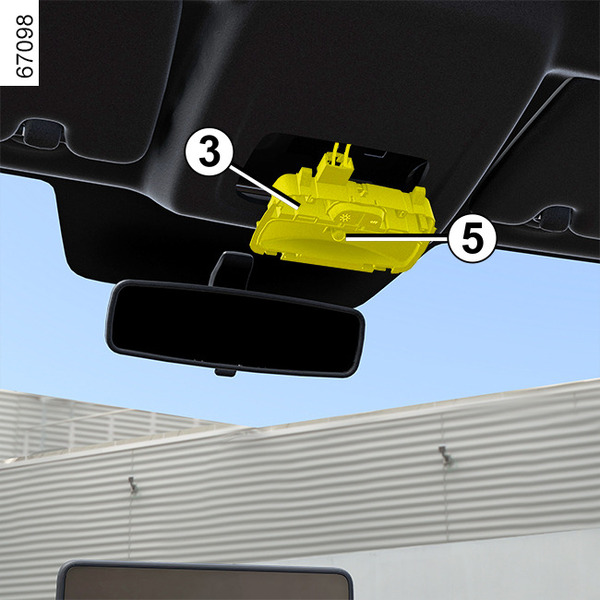

Front ceiling light 1

• Unclip the lens 2 using a tool such as a flat-head screwdriver positioned at area A;

• unclip and release the bulb holder 3 using the tabs 4;
• remove the bulb concerned.

Bulb type 5: W5W.

Refitting

• Clip the lens 2 onto the bulb holder 3;
• clip in the courtesy light 1 until your hear the click;
• ensure that the interior lights are properly positioned and locked into place.

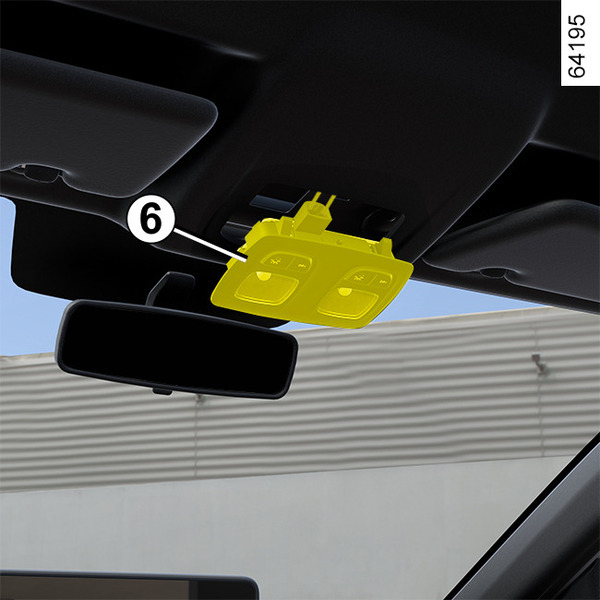

Front reading spot lights 6

(depending on the vehicle)

• Unclip the lens 7 using a tool such as a flat-head screwdriver positioned at area B;

• unclip and release the bulb holder 8 using the tabs 9;
• remove the bulb concerned.

Bulb type 10: W5W.

Refitting

• Clip the lens 7 onto the bulb holder 8;
• clip in the reading spot light unit 6 until it clicks;
• make sure that the reading spots block is correctly positioned and locked into place.

Rear reading spot light 11

(depending on the vehicle)

• Unclip the lens 12 using a tool such as a flat-head screwdriver positioned at area C;

• unclip and release the bulb holder 13 using the tabs 14;
• remove the bulb concerned.

Bulb type 15: W5W.

Refitting

• Clip the lens 12 onto the bulb holder 13;
• clip in the reading spot light unit 11 until you hear the click;
• make sure that the reading spots block is correctly positioned and locked into place.

Glove box light

Unclip the light 16 by pressing the tab to its left (using a flat-bladed screwdriver or similar).

Remove the bulb concerned.

Bulb type: W5W.

Luggage compartment light 17

Unclip the light 17 by using a flat-blade screwdriver or similar tool to press on the tab 18 to move the light towards the inside of the luggage compartment.

Disconnect the light.

Release the lens 19 and access the bulb 20.

Bulb type 20 : W5W.

Ambient lighting 21

Consult an approved Dealer.
