Renault Kardian
Fuse box
If any electrical component does not work, check the condition of the fuses.
Unclip flap A using the groove 1.
Tweezers 2
Disconnect the fuse using the tweezers 2 located at the back of flap A.
To remove the fuse from the puller, slide the fuse to the side.
It is not advisable to use the free fuse locations.
tip
To comply with current legislation, or as a precaution, you can obtain an emergency kit from your approved dealer containing a set of spare bulbs and fuses.
warning
Check the fuse in question and, if necessary, replace it with a fuse of the same rating as the original.
If a fuse is fitted with too high a rating, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.

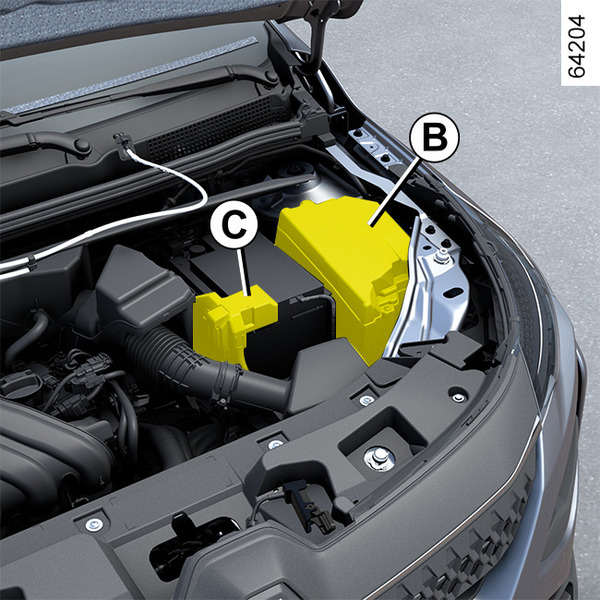

Fuses in the engine compartment B and C
Some functions are protected by fuses located in the engine compartment in units B and C.
However, because of their reduced accessibility, we advise you to have your fuses replaced by an approved dealer.
warning
Please note when working close to the engine that it may be hot. The engine cooling fan may also start at any moment. The
label in the engine compartment reminds you of this.
Risk of injury.
warning
Before carrying out any operation in the engine compartment, you must switch off the ignition Ignition-starter switch on a vehicle with keyIgnition-starter switch on a vehicle with card.
tip
Use the fuse allocation label in the storage compartment to identify the fuses.
Certain fuses should only be replaced by a qualified professional. These fuses are not listed on the label.
Only change the fuses represented on the label.
warning
When working in the engine compartment, ensure that the windscreen wiper stalk is in the off position.
Risk of injury.
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)
- 1
"Ambient light"
- 2
External and internal welcome sound
- 3
Passenger compartment ECU
- 4
Rear screen de-icer
- 5
Instrument panel
- 6
Horn
- 7
Radio
- 8
Multimedia port
- 9
Passenger compartment central unit, hands-free central unit
- 10
Electronic parking brake
- 11
Clutch/key immobiliser
- 12
Passenger compartment ECU
- 13
Steering column control
- 14
Central gateway CAN, diagnostic socket
- 15
Heating and ventilation controls, light/rain sensor
- 16
Passenger compartment central unit (direction indicator lights, hazard warning lights)
- 17
Passenger compartment ECU
- 18
Telematics computer
- 19
ECU ESC, brake light switch
- 20
Cigarette lighter, accessories socket
- 21
ECU, brake lights
- 22
Rear view electric mirrors control
- 23
Passenger compartment ECU
- 24
Power module GMV
- 25
Front ceiling light, luggage compartment light
- 26
One-touch windows for the front driver's seat
- 27
Towbar socket
- 28
One-touch windows for the front driver's seat and the front passenger's seat
- 29
Horn
- 30
One-touch windows for the front driver's seat for the rear seats
- 31
Heated rear view mirrors
- 32
Central unit Airbag/pretensioner
- 33
Instrument panel
- 34
Power-assisted steering
- 35
Central gateway CAN
