Renault Kardian
Rear parcel shelf
Removal
Unhook the two cords 1 (luggage compartment side).

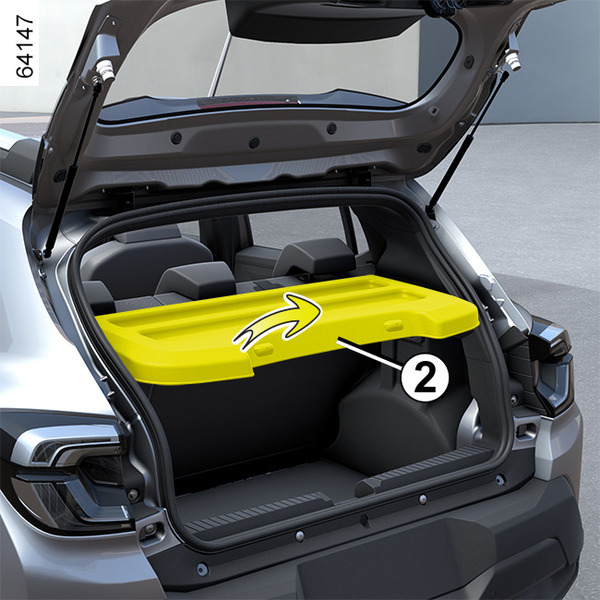

Lift the parcel shelf slightly 2 and pull it towards you.
To refit it, proceed in the reverse order to removal.
warning
Do not place any heavy or hard object on the parcel shelf. These may pose a risk to the vehicle occupants if the driver has to brake suddenly or if the vehicle is involved in an accident.
Luggage compartment storage space and fittings
Mobile floor 1
Flat position
Enables you to flatten the floor by folding down the back of the rear bench seat and to compartmentalise the boot into two distinct spaces.

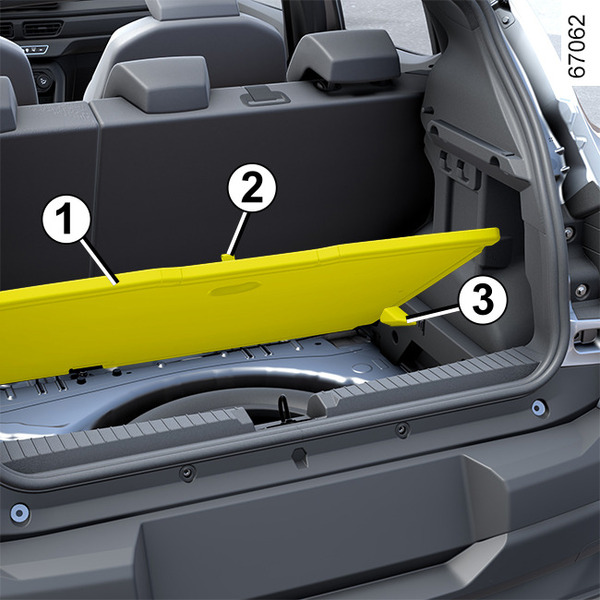

The mobile floor 1 is positioned on the runner 3.
Intermediate position
In locked position, it can be used to access the emergency spare wheel located under the floor.
- Remove the mobile floor 1 using the tab 2;
- place it in the luggage compartment using the runners provided 3.
tip
Maximum weight for the mobile floor: 100 kg evenly distributed.
Storage position
This allows for more space to store things in the boot.
- Remove the mobile floor 1 using the tab 2;
- place it in the luggage compartment underneath the runner 3.
Inclined position
Lift the mobile floor 1 using the tab 2 and place it on the lugs 4.
tip
Maximum weight on the mobile floor in the tilted position: 80 kg with the weight evenly distributed.
Transporting objects in the luggage compartment
Always position the objects transported so that the largest surface is against:
the rear bench seatbacks, for normal loads (example A);
the front seatbacks with the rear seatbacks folded down, as is the case for maximum loads Rear bench seat: functions (example B).
Ensure that the objects being transported are evenly distributed throughout the loading area.
If you have to place objects on the folded seat back, it is vital that you remove the headrests before folding the seat back so that it can be folded as flat as possible against the seat.
warning
Always position the heaviest items directly on the floor. Use the lashing points on the luggage compartment floor, if these are fitted to the vehicle. The luggage should be loaded in such a way that no items will be thrown forward and strike the occupants if the driver has to brake suddenly. Fasten the rear seat belts, even if the seats are not occupied.
tip
Always position objects being transported so that the heaviest items are resting against the back of the rear bench seat.
