If the vehicle is equipped, this device allows you to position the roof bars in the longitudinal or transverse position.

To place the bars in the transverse position:

  • release the rotating components 1 and place them in the vertical position (movement A);
  • loosen the bolts 2 using the torque wrench 7 (see the following pages) located in the glovebox;

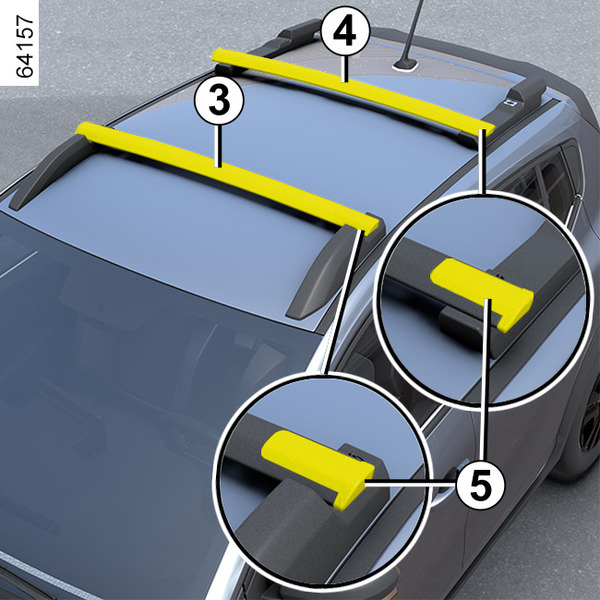

  • lift the bars 3 and 4 clip them in the transverse position 5. To do this, place bar 3 (movement B) in the front position, then place bar 4 (movement C) in the rear position.

Note: make sure that bars 3 and 4 are positioned correctly according to the direction shown on each mark 6 located on the mountings at each end of the bars.

tip

Maximum permissible load on roof rackWeights (in kg).

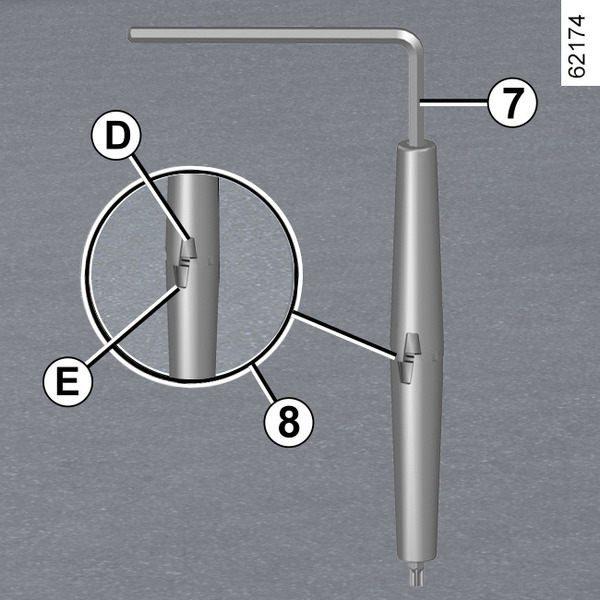

  • use the tool 7 to tighten the bolts 2: marks D and E located on the tool must not be aligned (mark 8);
  • tighten the bolts 2 as much as possible using the tool 7, until marks D and E located on the tool 7 are aligned (mark 9);
  • re-clip the rotating components 1.

Note: bars 3 and 4 are not interchangeable.

tip

It is strictly forbidden to place the roof bars in the transverse position (carrying position) when entering a roller-type car wash.

warning

Make sure the two modular roof bars are correctly positioned and locked.

tip

Roof bars in the transverse position

The maximum speed must be limited to 81 mph (130 km/h).

tip

When the bars are not being used in the transverse position, reposition them in the longitudinal position to optimise fuel consumption and avoid air noise.

tip

In the event of loss, contact an approved dealer to obtain the bolts 2 and the tool 7.

warning

Modular roof bars are originally assembled and approved by our Technical Department.

They are provided with the bolts 2 and the tool 7. They should be used only to attach the roof bars to the vehicle.

warning

Ensure that the objects and/or accessories (bicycle rack, roof rack, etc.) fitted on the modular roof bars are correctly positioned, evenly balanced and firmly fitted.

User precautions

Operating the luggage compartment door

Before opening the luggage compartment door, check that any objects and/or accessories (bicycle rack, roof rack, etc.) fitted on the roof bars are properly fitted and secured and are not hindering its opening.

warning

It is forbidden to fit a rack of any type (bicycle support, roof rack, etc.) to the door of the luggage compartment. If you wish to install a luggage rack on your vehicle, contact an approved dealer.
