To avoid all risk of sparks

  • Ensure that any "power consumers" (ceiling lights, etc.) are switched off before disconnecting or reconnecting the battery;
  • when charging, stop the charger before connecting or disconnecting the battery;
  • to avoid creating a short circuit between the terminals, do not place metal objects on the battery;
  • always wait at least one minute after the engine has been switched off before disconnecting the battery;
  • make sure that you reconnect the battery terminals after refitting.
warning

Switch off the ignition before carrying out any procedures in the engine compartment.

Connecting a battery charger

The battery charger must be compatible with a battery with a nominal voltage of 12 volts.

Do not disconnect the battery while the engine is running. Follow the instructions given by the manufacturer of the battery charger you are using.

warning

Some batteries may have specific requirements for recharging. Consult your approved dealer. Avoid all risk of sparks, as they may cause an immediate explosion Charge the battery in a well ventilated area.

Risk of serious injury

warning

Handle the battery with care as it contains sulphuric acid which must not come into contact with the eyes or skin. If it does, wash the affected area with plenty of cold water. If necessary, consult a doctor.

Keep flames, incandescent spots, and sparks away from battery components as there is a risk of explosion.

The engine may be hot when working in close proximity. In addition, the engine cooling fan can come on at any moment. The symbol 2_ALL_290_1_pictogramme.png in the engine compartment reminds you of this.

Risk of injury.

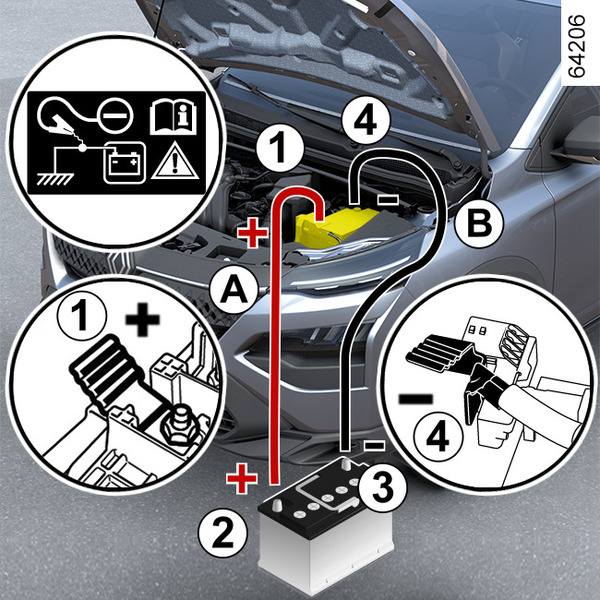

Starting the vehicle using the battery from another vehicle

If you have to use the battery from another vehicle to start, obtain suitable jump leads (with a large cross section) from an approved dealer or, if you already have jump leads, ensure that they are in perfect condition.

The two batteries should have an identical nominal voltage of 12 volts. The battery supplying the current should have a capacity (amp-hours, Ah) which is at least the same as that of the discharged battery.

Ensure that there is no risk of contact between the two vehicles (risk of short circuiting when the positive terminals are connected) and that the discharged battery is properly connected. Switch off your vehicle ignition.

Start the engine of the vehicle supply- ing the current and run it at an interme- diate engine speed.

Connect the negative cable (+) A to the terminal (+) 1 of the discharged battery, then to the terminal (+) 2 supplying the current.

Connect the negative cable (-) B to the terminal (-) 3 of the battery that supplies the current, and then to the terminal (-) 4 of the discharged battery.

Start the engine as normal. As soon as it starts, disconnect cables A and B in the inverse order (4-3-2-1).

tip

Depending on the vehicle, in the event of a battery failure (battery disconnected, battery discharged, etc.), a power steering reset must be carried out.

warning

Ensure that there is no contact between cables A and B and that the positive cable A is not in contact with any metallic component of the vehicle supplying the current.

Risk of serious injury and/or damage to the vehicle.
